A/TT1K-D-8"-4-PB | ACI | Temperature Sensors & Transmitters

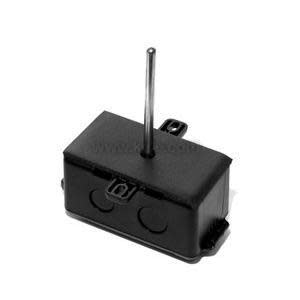

Temperature Transmitter, Duct, 8" Probe, Plastic Enclosure
Brand:ACI
MPN:A/TT1K-D-8"-4-PB
SKU:A/TT1KD8PB
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Type
RTD
Housing Material
Poly
Probe Length
8 in
Sensor Element
1K Platinum RTD 385
Transmitter Temperature Range
-40 to 185 °F (-40 to 85 °C)
Output
4 - 20 mA
Feature
Transmitter
Application
Chilled Water Systems,Hot Water Systems,Boilers,Pumps,Compressors,Chillers,Cooling Towers,Process Control
product series specifications
Accuracy:
Thermistor: ±0.36°F (0.2°C)
RTD: ±0.50°F (0.28°C)
Sensor Type:
Thermistor: 10 kΩ Type II & III, 20 kΩ, 100 kΩ
RTD: 100Ω, 1000Ω 385 curve
Temperature Range: 32° to 122°F (0° to 50°C)
Stability: 0.24°F (0.13°C) over five years
Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)
Enclosure Rating: NEMA 1, Plastic
Mounting:Direct to wall or single gang box
Wiring Terminations: 10" of 22 AWG wire or terminal strip
Weight: 0.12 lb (0.05 Kg)
Approvals: CE, RoHs
Warranty: 5 years
product series features
- ±0.36 degrees F (0.2 degrees C) accuracy
- Five-year warranty
- Wide selection of thermistor or RTD curves
- Delta-style room enclosure
- Digital display option
- Custom logos
more information & related documents
Series Description
The ACI Series Room Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The room sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Room sensors are vented for indoor use with options that include setpoint adjust, push-button override, communication jacks, and display. The ACI Room Sensor should be mounted approximately 5 ft (12.7 cm) above the floor. It can be mounted to a standard back box or directly to the wall using appropriate anchors for the wall covering.
Kele Description
DUCT 8" 4-20MA TRANS PLASTIC BOX 1K OHM
Manufacturer
ACI
