A/TT100-5090-R2-1 | ACI | Temperature Sensors & Transmitters

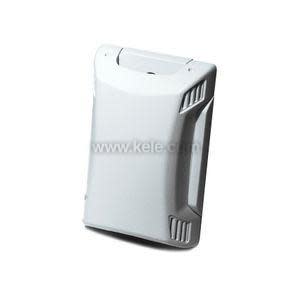

Room Temperature Transmitter, Designer, 100 RTD 385, 50° to 90°F, 0-5 VDC
Brand:ACI
MPN:A/TT100-5090-R2-1
SKU:A/TT1005090R21
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Type
RTD
Housing Material
Poly
Probe Length
None
Sensor Element
100 Ohm Platinum RTD 385
Housing Style
Designer
Transmitter Temperature Range
50 to 90 °F (10 to 32 °C)
Output
0 - 5 V
Display
No
Setpoint
No
Enclosure Rating
NEMA 1
Accessory
UR,DCP-1.5-W,DCPA-1.2
Feature
Transmitter
Application
Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment
product series specifications
Accuracy:
Thermistor: ±0.36°F (0.2°C)
RTD: ±0.50°F (0.28°C)
Sensor Type:
Thermistor: 10 kΩ Type II & III, 20 kΩ, 100 kΩ
RTD: 100Ω, 1000Ω 385 curve
Temperature Range: 32° to 122°F (0° to 50°C)
Stability: 0.24°F (0.13°C) over five years
Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)
Enclosure Rating: NEMA 1, Plastic
Mounting:Direct to wall or single gang box
Wiring Terminations: 10" of 22 AWG wire or terminal strip
Weight: 0.12 lb (0.05 Kg)
Approvals: CE, RoHs
Warranty: 5 years
product series features
- ±0.36 degrees F (0.2 degrees C) accuracy
- Five-year warranty
- Wide selection of thermistor or RTD curves
- Delta-style room enclosure
- Digital display option
- Custom logos
more information & related documents
Series Description
The ACI Series Room Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The room sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Room sensors are vented for indoor use with options that include setpoint adjust, push-button override, communication jacks, and display. The ACI Room Sensor should be mounted approximately 5 ft (12.7 cm) above the floor. It can be mounted to a standard back box or directly to the wall using appropriate anchors for the wall covering.
Kele Description
WALL XMTR 100 RTD OUTPUT 1/5 VDC 50 TO 90 F
Manufacturer
ACI
