A/CP-R | ACI | Temperature Sensors & Transmitters

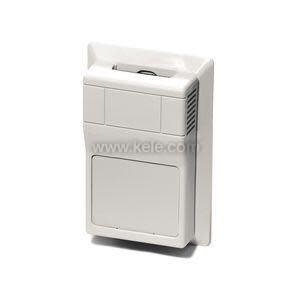

Room Temperature Sensor, Designer, 10K Type II, No Setpoint, No Override

Brand:ACI

MPN:A/CP-R

SKU:A/CP-R

List Price:

$30.33

Today's Price:

$15.77



Availability: 11 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Accessory

T81U-XR, T85U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2

Application

Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment

Housing Material

Poly

Housing Rating

NEMA 1

Housing Style

Designer

Output

Resistance

Probe Length

None

Sensor Element

10K Type 2 Thermistor

Setpoint

No

Type

Thermistor

Display

No

product series specifications

    Accuracy:
    Thermistor:
  • ±0.36°F (0.2°C)
    RTD:
  • ±0.50‚Ñâ (0.28‚ÑÉ)
    Sensor Type:
    Thermistor :
  • 10 k‚Ѷ Type II & III, 20 k‚Ѷ, 100 k‚Ѷ
    RTD:
  • 100‚Ѷ, 1000‚Ѷ 385 curve
    Thermistor:
    Temperature Range:
  • 32° to 122‚Ñâ (0° to 50‚ÑÉ)
    Stability:
    Thermistor:
  • 0.24°F (0.13°C) over five years
    RTD:
    Heat Dissipation:
  • Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)
    Enclosure Rating:
  • NEMA 1, Plastic
    Mountng:
  • Direct to wall or single gang box
    Wiring Terminations:
  • 10" (0.25m) of 22 AWG wire or terminal strip
    Weight:
  • 0.12 lb (0.05 Kg)
    Approvals:
  • CE, RoHs
    Warranty:
  • 5 years

product series features

  • ±0.36 degrees F (0.2 degrees C) accuracy
  • Five-year warranty
  • Wide selection of thermistor or RTD curves
  • Delta-style room enclosure
  • Digital display option
  • Custom logos

more information & related documents

Series Description

The ACI Series Room Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The room sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Room sensors are vented for indoor use with options that include setpoint adjust, push-button override, communication jacks, and display. The ACI Room Sensor should be mounted approximately 5 ft (12.7 cm) above the floor. It can be mounted to a standard back box or directly to the wall using appropriate anchors for the wall covering.

Kele Description

WALL DELTA ENC 10K 2 THMS

Manufacturer

ACI
