A/CP-BBS | ACI | Temperature Sensors & Transmitters

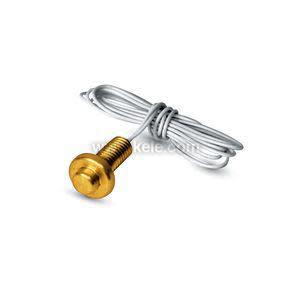

CP 10K (Type II) Brass Button Sensor, 24” Leads, Spacers & Brass Nut

Brand:ACI

MPN:A/CP-BBS

SKU:A/CP-BBS

List Price:

$123.92

Today's Price:

$64.44



Availability: 3 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Accessory

T81U-XR, T85U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2

Application

Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment, Duct Temperature, Immersion Temperature, Outside Air Temperature, OSA

Housing Rating

NEMA 1

Housing Style

Bullet

Lead Length

24 in

Output

Resistance

Probe Length

None

Sensor Element

10K Type 2 Thermistor

Setpoint

No

Type

Thermistor

Display

No

product series specifications

    Accuracy:
    Thermistor :
  • ±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
  • ±0.50‚Ñâ (0.28‚ÑÉ)
    Sensor Type:
    Thermistor :
  • 10 k‚Ѷ Type II & III, 20 k‚Ѷ, 100 k‚Ѷ
    RTD:
  • 100‚Ѷ, 1000‚Ѷ 385 curve
    Temperature Range:
  • -40° to 302‚Ñâ (-40° to 150‚ÑÉ)
    Stability:
    Thermistor :
  • 0.24‚Ñâ (0.13‚ÑÉ) over five years
    RTD:
  • <±0.1‚ÑÉ drift
    Heat Dissipation:
  • Thermistor, 3 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
    Enclosure Rating:
    Button:
  • NEMA 1, Brass, Stainless
    Bullet:
  • NEMA 4, Stainless
    Flush:
  • NEMA 1, Stainless
    Mounting:
    Button, Surface mount:
  • Directly to wall
    Bullet:
  • Strap on to pipe
    Flush:
  • Directly to wall
    Wiring Terminations:
  • 10" of 22 AWG wire or terminal strip
    Weight:
    Button:
  • 0.12 lb (0.05 Kg)
    Bullet:
  • 0.04 lb (0.02 Kg)
    Surface mount:
  • 0.2 lb (0.09 Kg)
    Approvals:
  • CE, RoHs
    Warranty:
  • 5 years

product series features

  • Five-year warranty
  • Stainless steel casing (BP)
  • Small footprint for hidden applications (BBS. SBS)
  • Brass or stainless button casing (BBS, SBS)
  • Available in thermistor or RTD

more information & related documents

Series Description

The ACI Bullet/Button Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The button and bullet style sensors come in thermistor or RTD sensor curves. The A/*BP Stainless Steel Thermistor and RTD Sensor is for under-insulation mounting and direct contact to the pipe. Clean off any insulation or rust to promote solid contact, and secure with tie wraps so the probe is parallel to the pipe.

Kele Description

WALL BRASS BUTTON 10K 2 THMS
