A/TTM1K-IM-4-4-BB-0-150F-5PTN | ACI | Temperature Sensors & Transmitters
Transmitter w/ 1,000 Ohm RTD (NIST Cert), Immersion, Machined Well, 4", NEMA 3R Enclosure, 4-20mA Output. 5PT NIST
Brand:ACI
MPN:A/TTM1K-IM-4-4-BB-0-150F-5PTN
SKU:A/TTM1K-IM-4-4-BB-0-150F-5PTN
List Price:
$373.50
Today's Price:
$336.15
Log in for customized pricingproduct specifications
Type
RTD
Probe Length
4 in
Sensor Element
1K Platinum RTD 385
Output Signal
Analog
product series specifications
Accuracy:
Thermistor: ±0.36°F (0.2°C)
RTD: ±0.50°F (0.28°C)
Sensor Type:
Thermistor: 10 kΩ Type II & III, 20 kΩ, 100 kΩ
RTD: 100Ω, 1000Ω 385 curve
Temperature Range: -40° to 302°F (-40° to 150°C)
Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: <±0.1°C drift
Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)
Enclosure Rating: NEMA 1, Galvanized metal box
Wiring Terminations: 10" of 22 AWG wire or terminal strip
Weight: 1.0 lb (0.45 Kg)
Approvals: CE, RoHs
Warranty: 5 years
product series features
- Five-year warranty
- Wide selection of thermistor or RTD curves
- Stainless steel probes
more information & related documents
Series Description

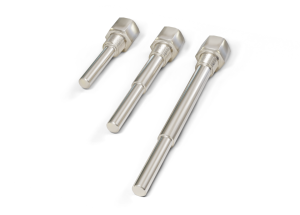

The ACI Series Immersion Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The immersion sensors come in thermistor and RTD sensor curves compatible with most Building Automation Systems, BAS, available today. The A/*I Immersion Sensor threads into a 1/2 in (1.27 cm) well (included), which is secured into the pipe to a customer-supplied 1/2 in saddle or Thredolet®. The probe is tight fitting for accurate readings. Faster response can be achieved by using TCC-12 thermal conductive compound at the bottom of the well.
Kele Description
0-150FIMMERSIONSENSOR4.0ININSERTIONALUM1KOHM
Manufacturer
ACI
