A/10K-E-R2 | ACI | Temperature Sensors & Transmitters

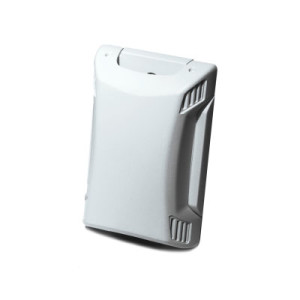

ROOM TEMP SENSOR TYPE 3 10K

Manufacturer:ACI

MPN:A/10K-E-R2

SKU:A/10K-E-R2

List Price:

20.00

Today's Price:

11.20



(login for better pricing)
USD
Availability: 1 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Accuracy

Thermistor

±0.36°F (0.2°C)

RTD

±0.50℉ (0.28℃)

Sensor Type

Thermistor

10 kΩ Type II & III, 20 kΩ, 100 kΩ

RTD

100Ω, 1000Ω 385 curve

Thermistor

Temperature Range

32° to 122℉ (0° to 50℃)

Stability

Thermistor

0.24°F (0.13°C) over five years

RTD

Heat Dissipation

Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)

Enclosure Rating

NEMA 1, Plastic

Mountng

Direct to wall or single gang box

Wiring Terminations

10" (0.25m) of 22 AWG wire or terminal strip

Weight

0.12 lb (0.05 Kg)

Approvals

CE, RoHs

Warranty

5 years

product family features

  • ±0.36℉ (0.2℃) accuracy
  • Five-year warranty
  • Wide selection of thermistor or RTD curves
  • Delta-style room enclosure
  • Digital display option
  • Custom logos

more information & related documents

Family Description

The ACI Series Room Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The room sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Room sensors are vented for indoor use with options that include setpoint adjust, push-button override, communication jacks, and display. The ACI Room Sensor should be mounted approximately 5' (12.7 cm) above the floor. It can be mounted to a standard back box or directly to the wall using appropriate anchors for the wall covering.

Kele Description

ROOM TEMP SENSOR TYPE 3 10K

Manufacturer

ACI
