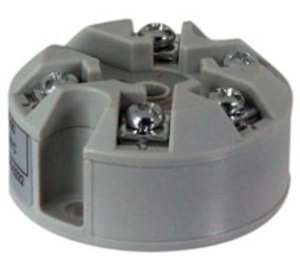

* product series image displayed

SEM710 | Status Instruments | Temperature Sensors & Transmitters

XMTR INDICATING TEMPERATURE

Brand:Status Instruments

MPN:SEM710

SKU:SEM710

List Price:

$797.00

Today's Price:

$414.44

catalog page

Lead time of 8 days. Chat with Kele experts now

product specifications

Type

RTD

Probe Length

None

Sensor Element

100 Ohm Platinum RTD

Output Signal

Resistance

product series specifications

Supply Voltage: 8-30 VDC

Signal Output: 4-20 mA, two-wire, loop-powered; Limits: Low: 3.8 mA; High: 21.5 mA

Maximum Output: Impedance: 600Ω @ 24 VDC

Accuracy: RTD: 0.18°F (±0.1°C) ±0.05% of reading

Stability: RTD: ±0.005% full scale

Rangeability: RTD: -328° to 1562°F (-200° to 850°C); Minimum span 45°F (25°C)

Sensing Element:

SEM203: 100 Ω platinum RTD (two- or three-wire) TCR 0.00385 Ω/Ω/°C

SEM710: 100 Ω 385 curve RTD only

Operating Temperature: -40° to 185°F (-40° to 85°C)

Operating Humidity: 10% to 90% non-condensing

Enclosure: SEM203: ABS plastic; SEM710: Polycarbonate

Wiring Terminations: Screw terminal

Weight: 0.07 lb (0.03 Kg)

Approvals: CE (EN61326)

Warranty: 18 months

product series features

Push button configuration
USB Port configuration (SEM710 only)
Programmable loss-of-sensor response
Adjustable fine tuning on zero and span
Input/output isolation
LED status indication
LED Display (SEM710 only)
High stability
CE approved

more information & related documents

Series Description

The SEM203 Series Push Button Transmitters are field rangeable, two-wire 4-20 mA transmitters used with Type 81 100 Ohm RTD sensors. The transmitters can be configured with a simple push button operation. The unit features selectable ranges, loss-of-sensor response, user trim for both 4 mA and 20 mA points, and reverse polarity protection. A bright LED provides visual indication of sensor fault and programming menus. The SEM710 Series Indicatiing Transmitter incorporates all of the features of the SEM203 but is instead configured through a USB Port and incorporates a bright red LED display for visual indication of temperature configurable in degrees F or degrees C.

Kele Description

XMTR INDICATING TEMPERATURE

Manufacturer

Status Instruments
