T85UEMC14S

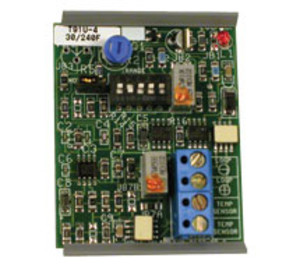

* product family image displayed

T85UEMC14S | Kele | Temperature Sensors & Transmitters

1K OHM 385 XMITTR 0/50C

Manufacturer:Kele

MPN:T85UEMC14S

SKU:T85UEMC14S

List Price:

$171.54

Today's Price:

$89.20



Availability: 6 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

view catalog page

product family specifications

    Supply Voltage:
  • 10.5-45 VDC
    Transmitter Accuracy:
  • ±0.2°F or 0.2% of the span TCR 0.00385 Œ©/Œ©/°C
    Signal Output:
  • 4-20 mA @ 675‚Ѷ, two wire loop-powered, except display @ 375‚Ѷ
    Rangeability:
  • -30° to 250°F (-34° to 121°C) Minimum span of 40°F (22°C)
    Rangeability:
    Zero:
  • -30° to 210‚Ñâ (-34.4° to 98.9‚ÑÉ)
    Minimum Span:
  • 40‚Ñâ (22‚ÑÉ)
    Usable Range:
  • -30° to 250‚Ñâ (-34.4° to 121.1‚ÑÉ)
    Loop Calibration Output:
  • 20 mA ± 0.2%
    Sensor Element:
  • 1000Œ© platinum TCR 0.00385 Œ©/Œ©/°C
    Operating Temperature:
  • 0° to 140°F (-18° to 60°C)
    Operating Humidity:
  • 0% to 95% non-condensing
    Wiring Terminations:
  • Terminals
    Weight:
  • 0.16 lb (0.07 Kg) w/o options
    Approvals:
  • CE (EN50081-1, EN50082-1)
    Optional CE (EN50081-2, EN50082-2) Industrial RF/EM Hardened:
    Warranty:
  • 1 year

product family features

Class A Sensors,Dip switch rangeable,Loop calibration test signal,Low cost,Snap-track mounting,Loop-powered LED indication,Fits into card slot of ST-U85 housing,CE approved (commercial and industrial),Available as a complete assembly,Conformal coated

more information & related documents

Family Description

The Kele T85U 1000 ohm RTD rangeable transmitter is a range selectable, two-wire 4-20 mA RTD transmitter used with Type 85 1000 Ohm platinum RTD sensors. The transmitter is available in six standard ranges, or it can be set for any range between -30 degrees to 280 degrees (-34 degrees to 156 degrees C) with a minimum span of 40 degrees (22 degrees C). To adjust the T85U, set the DIP switches to match the desired range, and use the zero and span pots to fine tune. A high accuracy digital ohmmeter and decade box are required. The T85U has a special 20 mA loop calibration test signal to provide easy system verification. Simply move the bottle plug jumper from norm to 20, and the transmitter will output a constant 20 mA. The loop-up LED provides power indication for the 4-20 mA output.

Kele Description

1K OHM 385 XMITTR 0/50C

Manufacturer

Kele

Related Documents

PDF - T85UXTD-Data Sheet.pdf T85UXTD-Data Sheet
PDF - T85U Installation Instructions.pdf T85U Installation Instructions
