SEARS ROOM XMTR | Kele | Temperature Sensors & Transmitters

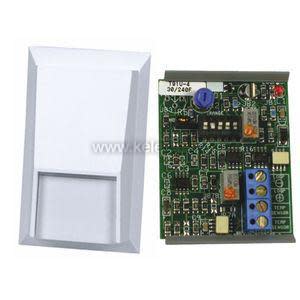

Sears Room Temperature Transmitter, 1K RTD 375, 4-20 mA Output, 20° to 120°F (-6.7° to 48.8°C) All Mounting Types

Brand:Kele

MPN:SEARS ROOM XMTR

SKU:SEARS ROOM XMTR

List Price:

$211.00

Today's Price:

$109.72



Availability: 9 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Accessory

UR, DCP-1.5-W, DCPA-1.2, KT1, TCC-111, TCC-12

Feature

Transmitter

Application

Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment, Duct Temperature, Immersion Temperature, Outside Air Temperature, OSA

Housing

No Enclosure

Housing Material

Poly

Housing Style

Executive

Output

4-20 mA

Probe Length

None

Sensor Element

1K Platinum RTD 375

Temperature Range

20 to 120 °F (-7 to 49 °C)

Type

RTD

product series specifications

    Supply Voltage:
  • 10.5-45 VDC
    Signal Output:
  • 4-20 mA, two-wire, looppowered Limit: 25 mA
    Minimum Output :
    Impedance:
  • 675‚Ѷ @ 24 VDC
    Accuracy:
    Sensor:
  • ±0.54‚Ñâ (0.30‚ÑÉ)
    Transmitter:
  • 0.1‚Ñâ or 0.2% of span
    Rangeability:
  • -30° to 250‚Ñâ (34° to 121‚ÑÉ) Min span of 40‚Ñâ (22‚ÑÉ)
    Rangeability:
    Zero:
  • -30° to 210‚Ñâ (-34.4° to 98.9‚ÑÉ)
    Minimum Span:
  • 40‚Ñâ (4.4‚ÑÉ)
    Usable Range:
  • -30° to 250 ‚Ñâ (-34.4° to 121.1‚ÑÉ)
    Sensor Type:
  • 1000‚Ѷ thin film platinum TCR 0.00375‚Ѷ/‚Ѷ/‚ÑÉ
    Sensitivity:
  • 2.1‚Ѷ/‚Ñâ @ 32‚Ñâ
    Operating Temperature:
  • 0° to 140‚Ñâ (-18° to 60‚ÑÉ)
    Operating Humidity:
  • 0% to 95% non-condensing
    Weight:
  • 0.3 lb (0.14 kg) either style ‚Ä=E‚Ä= or ‚Ä=K‚Ä=
    Approvals:
  • CE (EN50081-1, EN50082-1) Optional CE (EN50081-2, EN50082-2) Industrial RF/EM hardened
    Warranty:
  • 18 months

product series features

  • Low cost
  • High accuracy
  • No drift platinum RTD sensors
  • Panel mounting for duct, immersion, OSA, and room
  • UL 94V-0 plenum rated housing
  • Used with Type 91 sensor

more information & related documents

Series Description

The Kele Model ST-T90 Series is a fixed range 1000 Ohm, 375 platinum room temperature transmitter that provides stable, accurate room sensing for temperature control of Building Automation Systems. The attractive white vented housing mounts easily and is constructed of durable plenum rated plastic with a white enameled aluminum faceplate. The ST-T910E is the Executive style room transmitter amd the ST-T90K is the Design style room transmitter.

Kele Description

1K OHM ROOM TEMP 4-20MA 20/120F

Manufacturer

Kele
