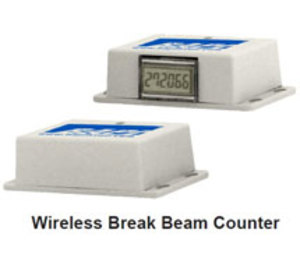

WIRELESS BREAK BEAM SENSOR-SIDE MOUNT
Brand:BAPI
MPN:BA/WBB-S
SKU:BA/WBB-S
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Enclosure Rating
NEMA 4
product series specifications
- BA/WBB Break Beam Counter:
- Supply Voltage:
- :
- 3.6 Lithium AA Batteries
- :
- IR Projector: 2, AA batteries
- :
- Counter/transmitter: 1, AA battery
- Battery life:
- :
- 2 years @ 10 second intervals
- Battery Ambient:
- :
- -55° to 125∫C (-67° to 257∫F)
- Battery Included:
- :
- BA/LI3620, 3.6V, AA
- IR Projector:
- :
- Pulsed Infrared, 32 pulses/sec, 30 feet projection maxinum
- IR Counter/Transmitter:
- :
- Count Max: 16.7M and roles over to 0
- :
- LCD Display: 25”, 6 digit display
- :
- Beam indicator: LED lights when beam is broken
- :
- Manual reset: Resets count and display to zero
- :
- Button: Set-up mode push 1-2 seconds
- Radio Frequency:
- :
- 418 MHz @ 1mW
- Transmitter Interval:
- :
- ~10-17 sec. (~37 sec if no change)
- ID#, Ennumerator:
- :
- 65/64, no ennumerator
- Transmission Range:
- :
- Up to 100 feet direct, Up to 1,000 feet with a repeater
- Mounting:
- :
- Flange w/4 keyholes
- Operating Temperature:
- 0∫ to 158∫F (0∫ to 70∫C)
- Operating Humidity:
- 0 to 90% RH, Non-condensing
- Enclosure Rating:
- :
- NEMA 1, ABS Plastic
- Weight:
- 0.09 lb (0.04 Kg)
- Approvals:
- FCC, RoHs
- Warranty:
- 1 year
- ---------------------------------------------------------------------------------------------------:
- BA/WDS Door Switch:
- Supply Voltage:
- :
- One 3.6 Lithium, AA Battery (included)
- Battery life:
- :
- 2 years @ 10 second intervals
- Battery Ambient:
- :
- -55° to 125∫C (-67° to 257∫F)
- Battery Included:
- :
- BA/LI3620, 3.6V, AA
- Sensor:
- :
- Magnetically activated Reed Switch
- Activator:
- :
- Door mounted magnet
- Mounting:
- :
- Transmitter: 4 key holes
- :
- Magnet: 2 slotted holes
- :
- Maximum Gap: 0.25”
- Case Material:
- :
- ABS Plastic
- Radio Frequency:
- :
- 418 MHz @ 1mW
- Transmitter Interval:
- :
- ~10-17 seconds
- ID#, Enumerator:
- :
- 74/73, No enumerator
- Transmission Range:
- :
- Up to 100 feet direct, Up to 1,000 feet with a repeater
- Operating Temperature:
- -40∫ to 185∫F (-40∫ to 85∫C)
- Operating Humidity:
- 0 to 90% RH, Non-condensing
- Enclosure Rating:
- NEMA 1
- Dimensions:
- :
- Transmitter: 3.1”W x 2”H x 1”D
- :
- Magnet: 1.1”W x .75”H x .25”D
- Weight:
- 0.09 lb (0.04 Kg)
- Approvals:
- FCC, RoHs
- Warranty:
- 1 year
product series features
- BA/WBB Wireless Break Beam Counter Features:
- Infrared Beam Up to 30 Feet
- Cumulated Break Beam Count
- Transmission Interval from 10 Seconds
- 100 Ft Open Air Range, 1,000 Ft Range with Repeater
- Two Year Battery Operation
- Easy Flange Mounting
- Easy Setup Mode w/ Reset Switch
- 6 Digit LCD Display
- Front or Side Beam Models BA/WDS Wireless Door Switch Features:
- Easy Door Mounting
- Cumulated Door Operations Count
- Transmission Interval from 10-17 Seconds
- 100 Foot Open Air Range
- 1,000 Foot Range with Repeater
- Conformal Coated PC Board
- Condensation Resistant Operation
more information & related documents
Series Description
The BAPI BA/WBB Wireless Break Beam Counter is ideal for gathering marketing data by counting patrons as they enter the building, buffet line, playground, outdoor dining or cars in the drivethrough. The wireless mounting makes this form of information gathering fast, easy, and flexible and is ideal for temporary or permanent data gathering. The BA/WDS Wireless Door Switch is ideal for monitoring Refrigerators, Freezers and Outside Doors such as door hatches and garbage gates. This allows the owner to identify needless door openings, or when a door has been left open, and save money and energy by correcting the problem and reducing the cold or warm air that escapes. Back garbage container gates can also be monitored to limit vandalism.
Kele Description
WIRELESS BREAK BEAM SENSOR-SIDE MOUNT
Manufacturer
BAPI
Related Documents
BA/WDS Specifications
