T112R2W | Greystone Energy Systems | Temperature Sensors & Transmitters
2 INCH 316SS WELL
Brand:Greystone Energy Systems
MPN:T112R2W
SKU:T112R2W
product specifications
Housing
No Enclosure
product series specifications
Sensor: Several Thermistors, Platinum or Nickel RTDs available. See product ordering information.
Sensor Accuracy:
Thermistors: ±0.2°C (±0.36°F), 0 to 70°C (32 to 158°F)
Platinum RTDs: ±0.3°C (±0.54°F) @ 0°C (32°F)
Nickel RTDs: ±0.4°C (±0.72°F) @ 0°C (32°F)
Operating Temperature:
AP, B, C, E, EX, G, & HC: -20 - 105°C (-4 - 221°F)
BB, D, DR, FD & FL: -20 - 60°C (-4 - 140°F)
DC: -40 - 100°C (-40 - 212°F)
F, FE & FX: -50 - 100°C (-58 - 212°F)
H: (Sensor 4 & 28) -100 - 600°C (-148 - 1112°F)
Probe Material:
AP, B, BB, C, DR, E, FL, H: 6.35 mm (0.25 in) O.D., 304 series stainless steel
D & DC: 7.94 mm (0.3125 in) O.D. soft copper
FD: FT-6 rated plenum cable
ES: 2 in x 2 in aluminum plate
G: 0.5 in x 0.5 in x 2 in aluminum wafer
Wire Material:
AP, B, C, DR, E, ES, G, HC: PVC insulated, parallel bonded, 22 AWG
(Sensor type 2, 100 ohm platinum uses FT-4)
BB, D, FD, FL: FT-6 rated plenum cable, 22 AWG
DC: PTFE insulated, 22 AWG
H: Fiberglass insulated cable, 24 AWG
Enclosure:
Standard - ABS - UL94-5VB - IP61 (NEMA 2)
Round (E) - ABS - UL94-5VB - IP65 (NEMA 4X)
Metal (M) - Galvanized Steel - IP50 (NEMA 1)
Weatherproof (W) - Cast Aluminum - IP64 (NEMA 3X)
Hinged Weatherproof (FX) - ABS - UL94-5VB - IP65 (NEMA 4X)
Wiring Connections:
Pigtail, 2 or 3 wire
Round (E) enclosure- screw terminal block (14 to 22 AWG)
Warranty: 5 years
product series features
- Thermistor or Precision RTD
- Various configurations available
- Selection of enclosures
- Custom laser etching available
more information & related documents
Series Description

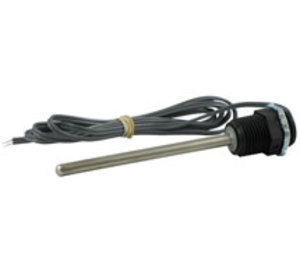

The Greystone Energy Systems Model TE200AP/C Series immersion sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The active sensing element is a highly stable precision thermistor material or platinum RTD.
Kele Description
2 INCH 316SS WELL
Manufacturer
Greystone Energy Systems
