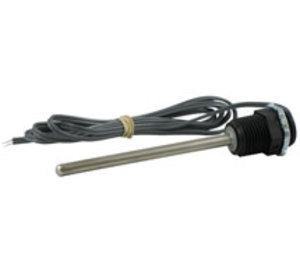

T112D18 | Greystone Energy Systems | Temperature Sensors & Transmitters

 Thermistors: ±0.2°C (±0.36°F), 0 to 70°C (32 tp 158°F)

 Platinum RTD’s: ±0.3°C (±0.54°F) @ 0°C (32°F)

 Nickel RTD’s: ±0.4°C (±0.72°F) @ 0°C (32°F)

 AP, B, C, E, EX, G, & HC: -20 - 105°C (-4 - 221°F)

 BB, D, DR, FD & FL: -20 - 60°C (-4 - 140°F)

 DC: -40 - 100°C (-40 - 212°F)

 F, FE & FX: -50 - 100°C (-58 - 212°F)

 H: (Sensor 4 & 28) -100 - 600°C (-148 - 1112°F)

 AP, B, BB, C, DR, E, FL, H: 6.35 mm (0.25”) O.D., 304 series stainless steel

 D & DC: 7.94 mm (0.3125”) O.D. soft copper

 FD: FT-6 rated plenum cable

 ES: 2” x 2” aluminum plate

 G: 0.5” x 0.5” x 2” aluminum wafer

 AP, B, C, DR, E, ES, G, HC: PVC insulated, parallel bonded, 22 AWG

 (Sensor type 2, 100 ohm platinum uses FT-4)

 BB, D, FD, FL : FT-6 rated plenum cable, 22 AWG

 DC: PTFE insulated, 22 AWG

 H : Fiberglass insulated cable, 24 AWG

 Standard - ABS - UL94-5VB - IP61 (NEMA 2)

 Round (E) - ABS - UL94-5VB - IP65 (NEMA 4X)

 Metal (M) - Galvanized Steel - IP50 (NEMA 1)

 Weatherproof (W) - Cast Aluminum - IP64 (NEMA 3X)

 Hinged Weatherproof (FX) - ABS - UL94-5VB - IP65 (NEMA 4X)

 Pigtail, 2 or 3 wire

 Round (E) enclosure- screw terminal block (14 to 22 AWG)
