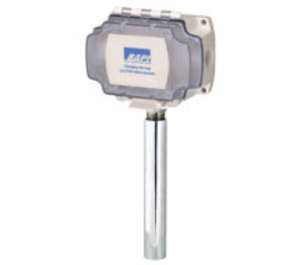

* product series image displayed

BA/20KTBM3042HB | BAPI | Temperature Sensors & Transmitters

THERMOBUFFER 20K THMS 2IN M304 FEP 25FT HANGN BRAC

Brand:BAPI

MPN:BA/20KTBM3042HB

SKU:BA/20KTBM3042HB

List Price:

$-.--

Today's Price:

$-.--

catalog page

product specifications

Type

Thermistor

Probe Length

2 in

Sensor Element

20K Thermistor

Housing

Hanging Bracket

Output Signal

Resistance

product series specifications

Accuracy:

Thermistor: ±0.36°F (0.2°C)

RTD: ±0.55°F (0.30°C)

Sensor Type:

Thermistor: 10kΩ, Type II & III

RTD: 100Ω, 1000Ω 385 curve, 1000Ω 375 curve

Temperature Range: -40° to 185°F (-40° to 85°C)

Stability:

Thermistor: ±0.036°C (0.02°F) per year

RTD: 0.14°C with 6,000 continuous hours at 400°C

Heat Dissipation: 0.4°C/mW at 0°C, 2.7 mW/°C (power needed to raise the temperature 1C)

Chamber Fluid: Glycol (customer supplied)

HB: Remote probe with 30m cable and bracket

Enclosure Rating:

HB: NEMA 1, Hanging Bracket with 30m jacketed cable

BB: NEMA 4, BAPI Box: IP66, UV- resistant polycarbonate

BB2: NEMA 4, BAPI Box 2: IP66, UV- resistant polycarbonate

Mounting: Directly to wall or with hanging bracket

Wiring Terminations: 22 AWG wire, etched teflon leads

Weight: HB: 0.55 lb (0.25 Kg); BB: 0.8 lb (0.36 Kg); BB2: 0.8 lb (0.36 Kg)

Approvals: CE, RoHS

Warranty: Lifetime

product series features

Fluid-filled chamber to mimic core temperatures
Wall mounted or hanging bracket
Limited Lifetime warranty
Used in Freezer applications
Wall mount or wire shelf hanger
Lower temperature ranges available

more information & related documents

Series Description

The BAPI BA Series Thermobuffer Thermistor and RTD Sensors are designed specifically for freezers and coolers to simulate the temperature of the contents rather than the air temperature. The fluid-filled chamber allows for slower reaction to abrupt temperature changes, thus eliminating the false alarms caused by opening and closing the door. The Thermobuffer comes in 2 in and 4 in buffer sizes with an enclosure for wall mounting or hanging bracket mount.

Kele Description

THERMOBUFFER 20K THMS 2IN M304 FEP 25FT HANGN BRAC

Manufacturer

BAPI
