BA/10K3TBMAL4HB | BAPI | Temperature Sensors & Transmitters

THERMOBUFFER TEMP 4IN AL 10K-3 THMS HANG BRKT

Brand:BAPI

MPN:BA/10K3TBMAL4HB

SKU:BA/10K3TBMAL4HB

List Price:

$214.55

Today's Price:

$111.56

product datasheet

installation instructions

catalog page

Lead time of 10 days. Chat with Kele experts now

product specifications

Type

Thermistor

Probe Length

4 in

Sensor Element

10K Type 3 Thermistor

Housing

Hanging Bracket

Output Signal

Resistance

product series specifications

Accuracy:

Thermistor: ±0.36°F (0.2°C)

RTD: ±0.55°F (0.30°C)

Sensor Type:

Thermistor: 10kΩ, Type II & III

RTD: 100Ω, 1000Ω 385 curve, 1000Ω 375 curve

Temperature Range: -40° to 185°F (-40° to 85°C)

Stability:

Thermistor: ±0.036°C (0.02°F) per year

RTD: 0.14°C with 6,000 continuous hours at 400°C

Heat Dissipation: 0.4°C/mW at 0°C, 2.7 mW/°C (power needed to raise the temperature 1C)

Chamber Fluid: Glycol (customer supplied)

HB: Remote probe with 30m cable and bracket

Enclosure Rating:

HB: NEMA 1, Hanging Bracket with 30m jacketed cable

BB: NEMA 4, BAPI Box: IP66, UV- resistant polycarbonate

BB2: NEMA 4, BAPI Box 2: IP66, UV- resistant polycarbonate

Mounting: Directly to wall or with hanging bracket

Wiring Terminations: 22 AWG wire, etched teflon leads

Weight: HB: 0.55 lb (0.25 Kg); BB: 0.8 lb (0.36 Kg); BB2: 0.8 lb (0.36 Kg)

Approvals: CE, RoHS

Warranty: Lifetime

product series features

Fluid-filled chamber to mimic core temperatures
Wall mounted or hanging bracket
Limited Lifetime warranty
Used in Freezer applications
Wall mount or wire shelf hanger
Lower temperature ranges available

more information & related documents

Series Description

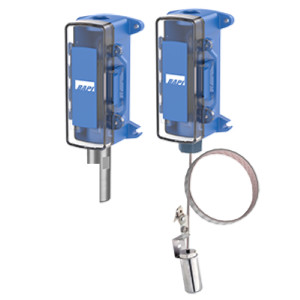

The BAPI BA Series Thermobuffer Thermistor and RTD Sensors are designed specifically for freezers and coolers to simulate the temperature of the contents rather than the air temperature. The fluid-filled chamber allows for slower reaction to abrupt temperature changes, thus eliminating the false alarms caused by opening and closing the door. The Thermobuffer comes in 2 in and 4 in buffer sizes with an enclosure for wall mounting or hanging bracket mount.

Kele Description

THERMOBUFFER TEMP 4IN AL 10K-3 THMS HANG BRKT

Manufacturer

BAPI
