TKBIR00 | Veris | Temperature Sensors & Transmitters

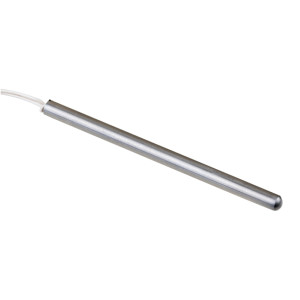

Duct temperature sensor, 2.5" Pencil Probe, SS. 1K Nickel Iron (Balco) RTD.
Brand:Veris
MPN:TKBIR00
SKU:TKBIR00
List Price:
$38.00
Today's Price:
$19.76
Log in for customized pricingproduct specifications
Type
RTD
Probe Length
4.50 in
Sensor Element
1K Thmco 1 RTD
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: 2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C)
10k Type 2 & 3: ±0.06°F (0.1°C)
RTD: 100, 100 385 curve: ±0.17°F (0.3°C)
Sensor Type:
Thermistor: 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ
RTD: 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve
Temperature Range: Thermistor/RTD: -13 to 221°F (-25° to 105°C)
Temperature Coefficient:
Thermistor: Negative temperature coefficient
RTD: Positive temperature coefficient
Mounting: Directly to pipe
Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 - 1.52 m)
Probe length: 4 1/2" (11 cm), 6" (15 cm) or 8" (20 cm)
Enclosure: Stainless steel body
Weight: 4 1/2": 0.15 lb (0.07 Kg); 6": 0.2 lb (0.09 Kg); 8": 0.3 lb (0.24 Kg)
Warranty: 5 years
more information & related documents
Series Description
The Veris TK Series Remote probe Thermistor and RTD Wall Sensors provide precision room temperature sensing for building automation systems. The TK Series has many probe lengths to choose from such as 4 1/2 in (11 cm), 6 in (15 cm) and 8 in (20 cm). This design is intended for interior use only.
Kele Description
STRAP-ON TEMP 4 1/2IN SS PROBE 1K OHM BALCO RTD
Manufacturer
Veris
TK Remote Probe Series datasheet
