TBEB0 | Veris | Temperature Sensors & Transmitters

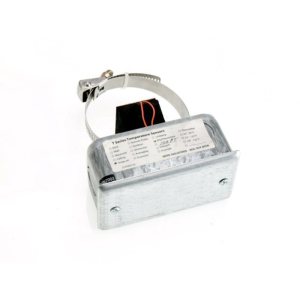

Immersion temperature sensor, 2.5 circumference clamp, 100 Ω platinum RTD.
Brand:Veris
MPN:TBEB0
SKU:TBEB0
product specifications
Housing
Handy Box
Output
Resistance
Probe Length
None
Sensor Element
100 Ohm Platinum RTD 385
Type
RTD
product series specifications
Accuracy:
Thermistor: 2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C)
10k Type 2 & 3: ±0.06°F (0.1°C)
RTD: 100, 100 385 curve: ±0.17°F (0.3°C)
Sensor Type:
Thermistor: 2.2kO, 3kO, 10kO Type 2 & 3, 20kO, 100kO
RTD: 100O, Pt 385 Curve; 1000O, Pt 385 Curve
Temperature Range: Thermistor/RTD: -13 to 221°F (-25° to 105°C)
Temperature Coefficient:
Thermistor: Negative temperature coefficient
RTD: Positive temperature coefficient
Mounting: Directly to Pipe
Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 - 1.52 m)
Probe length: 2 1/2" (6.4 cm)
Enclosure: Stainless Steel
Weight: 0.2 lb (0.09 Kg)
Warranty: 5 years
more information & related documents
Series Description
The Veris TB & TRA Series Stainless Steel Sheath Thermistor and RTD Sensors provide remote and strap-on temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable thermistor material or platinum RTD. The sensing element is rugged and sealed with a thermally conductive compound in a versatile 2 1/2 in (6.4 cm)- long stainless steel tube. The probe is waterproof, and the sensor is ideal for use or as a strap-on sensor for pipes.
Kele Description
STRAP-ON 12 IN 100OHM 385 RTD
Manufacturer
Veris
