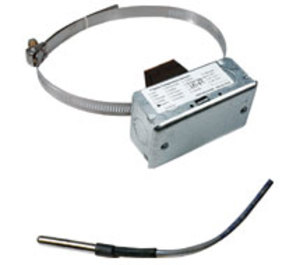

TBAW0 | Veris | Temperature Sensors & Transmitters
STRAP-ON 2.5 IN 10K T2 THMS HIGH ACC
Brand:Veris
MPN:TBAW0
SKU:TBAW0
product specifications
Housing
Handy Box
Output
Resistance
Probe Length
None
Sensor Element
10K Type 2 Thermistor
Type
Thermistor
product series specifications
- Accuracy:
- Thermistor:
- 2.2k, 3k,20k,100k:
- ±0.11‚Ñâ (0.2‚ÑÉ)
- 10k Type 2 & 3:
- ± 0.06‚Ñâ (0.1‚ÑÉ)
- RTD:
- 100, 100 385 curve:
- ±0.17‚Ñâ (0.3‚ÑÉ)
- Sensor Type:
- Thermistor:
- 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ
- RTD:
- 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve
- Temperature Range:
- Thermistor/RTD:
- -13° to 221‚Ñâ (-25° to 105‚ÑÉ)
- Temperature Coefficient:
- Thermistor:
- Negative temperature coefficient
- RTD:
- Positive temperature coefficient
- Mounting:
- Directly to pipe
- Wiring Terminations:
- 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)
- Probe length:
- 2 1/2‚Ä= (6.4 cm)
- Enclosure:
- Stainless steel
- Weight:
- 0.2 lb (0.09 Kg)
- Warranty:
- 5 year
more information & related documents
Series Description
The Veris TB & TRA Series Stainless Steel Sheath Thermistor and RTD Sensors provide remote and strap-on temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable thermistor material or platinum RTD. The sensing element is rugged and sealed with a thermally conductive compound in a versatile 2 1/2 in (6.4 cm)- long stainless steel tube. The probe is waterproof, and the sensor is ideal for use or as a strap-on sensor for pipes.
Kele Description
STRAP-ON 2.5 IN 10K T2 THMS HIGH ACC
Manufacturer
Veris
Related Documents
TB Series Datasheet x
