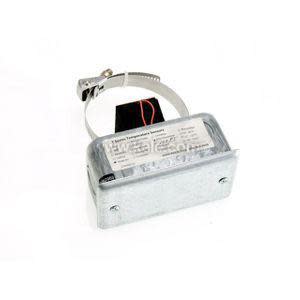

A small box-shaped temperature sensor fastened to a flexible metal strap; the housing bears a printed specification label with red wires emerging, all resting on a white background.

TBAF2 | Veris | Temperature Sensors & Transmitters

Strap-On 2.5 In 3K Thermistor NIST 2 Pt

Brand:Veris

MPN:TBAF2

SKU:TBAF2

List Price:

$239.00

Today's Price:

$124.28

product datasheet

installation instructions

Lead time of 12 days. Chat with Kele experts now

product specifications

Type

Thermistor

Probe Length

None

Sensor Element

3K Thermistor

Housing

Handy Box

Output Signal

Resistance

product series specifications

Accuracy:

Thermistor: 2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C)

10k Type 2 & 3: ±0.06°F (0.1°C)

RTD: 100, 100 385 curve: ±0.17°F (0.3°C)

Sensor Type:

Thermistor: 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ

RTD: 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve

Temperature Range: Thermistor/RTD: -13 to 221°F (-25° to 105°C)

Temperature Coefficient:

Thermistor: Negative temperature coefficient

RTD: Positive temperature coefficient

Mounting: Directly to Pipe

Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 - 1.52 m)

Probe length: 2 1/2" (6.4 cm)

Enclosure: Stainless Steel

Weight: 0.2 lb (0.09 Kg)

Warranty: 5 years

more information & related documents

Series Description

The Veris TB & TRA Series Stainless Steel Sheath Thermistor and RTD Sensors provide remote and strap-on temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable thermistor material or platinum RTD. The sensing element is rugged and sealed with a thermally conductive compound in a versatile 2 1/2 in (6.4 cm)- long stainless steel tube. The probe is waterproof, and the sensor is ideal for use or as a strap-on sensor for pipes.

Kele Description

STRAP-ON 2.5 IN 3K THMS NIST 2 PT

Manufacturer

Veris
