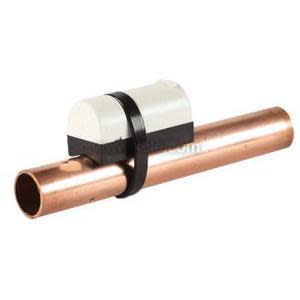

Tasseron Strap-On Mini Sensor with 10K Type 2 Element
Brand:Tasseron Sensors
MPN:THTSPA00
SKU:THTSPA00
List Price:
$38.95
Today's Price:
$20.25
product specifications
Accessory
#20, APB-28, PN-46, TCC-111, TCC-12, T85U-XR, T81U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2
Application
Cold Water Systems, Hot Water Systems, Retrofit, Hydronic Heating Systems, Chillers
Housing Rating
IP54
Housing Style
Strap-On
Output
Resistance
Probe Length
None
Sensor Element
10K Type 2 Thermistor
Strap Pipe Diameter
0 to 3.50 in
Type
Thermistor
product series specifications
- Enclosure:
- IP54, Injection-molded polycarbonate
- Cover:
- Quick Snap, injection-molded polycarbonate
- Mounting:
- Heat-resistant strap included for up to 3 1/2‚Ä= diameter pipe
- Connection:
- 2-pole AWG 22-16 / 0.35-1.5mm2 spring-loaded, Patent Pending Quick Connect System
- Sensor Element:
- Interchangeable NTC thermistor, 2-wire, RTD Pt1000, 2-wire, Ni1000-891, 2-wire
- Sensor Value:
- NTC 10KΩ type 2 @ 25℃ / 77℉
- :
- NTC 10KΩ type 3 @ 25℃ / 77℉
- :
- NTC 20KΩ @ 25℃ / 77℉
- :
- NTC 3KΩ @ 25℃ / 77℉
- :
- RTD Pt1000 1000Ω @ 0℃ / 32℉
- :
- RTD Ni1000-891 891Ω @ 0℃ / 32℉
- :
- (Other elements on request)
- Accuracy:
- NTC thermistor 0...70‚ÑÉ ± 0.2‚ÑÉ / 32...158‚Ñâ ± 0.36‚Ñâ
- :
- Pt1000 Class B IEC751, ± 0.3‚ÑÉ / ± 0.5‚Ñâ @ 0‚ÑÉ / 32‚Ñâ
- :
- Ni1000 DIN 43760, ± 0.5‚ÑÉ / ± 0.9‚Ñâ @ 0‚ÑÉ / 32‚Ñâ
- Range:
- 0...90‚ÑÉ / -4...194‚Ñâ
- Approvals:
- CE, RoHS compliant
- Warranty:
- 5 year limited warranty
- Accessories:
- 1/2‚Ä= NPT conduit adapter
- :
- Strap for pipes larger than 3 1/2‚Ä= diameter
product series features
- Assembled in the USA
- Durable IP54 injection-molded enclosure with Quick Snap Cover
- Small compact design
- Spring loaded contact surface
- Optional 1/2 in NPT conduit adapter
- Patent Pending Quick Connect System for fast installation
- NTC thermistors and RTD elements available
- Compatible with any control system
- CE and RoHS compliant
- 5 year limited warranty
more information & related documents
Series Description
The Tasseron Q-Strap-On Mini is a high quality Pipe Mounted Strap-On Temperature Sensor in an injection-molded plastic enclosure provides a cost-effective solution as an alternative for traditional immersion sensors in both commercial and industrial applications. Available measuring elements interface with all major control manufacturers. Accurate interchangeable thermistors and RTD's ensure low drift and are double encapsulated to guarantee the highest reliability. The spring-loaded contact surface adjusts automatically to different pipe sizes and uneven surfaces. The Quick Snap Cover and patent pending Quick Connect System make installation easy and reduces installation costs.
Kele Description
Q-STRAP MINI NTC 10K-2
Manufacturer
Tasseron Sensors
