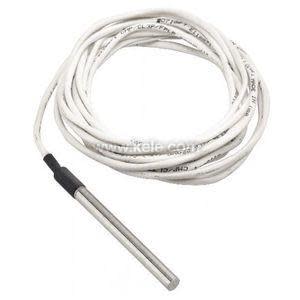

Stainless steel probe attached to a long white cable with two exposed wires

TE-6300-603 | Johnson Controls | Temperature Sensors & Transmitters

Bullet Temperature Sensor 1,000 ohm Nickel Element, 2.00" Probe

Brand:Johnson Controls

MPN:TE-6300-603

SKU:TE-6300-603

List Price:

$143.00

Today's Price:

$74.36

product datasheet

installation instructions

catalog page

product specifications

Type

RTD

Probe Length

2 in

Sensor Element

1K Ohm Nickle-Iron Balco

Housing Style

Bullet

Lead Length

22 in

Accessory

T85U-XR,T81U-XR,T91U-XR,UR,DCP-1.5-W,DCPA-1.2

Application

Cold Water Systems,Hot Water Systems,Retrofit,Hydronic Heating Systems,Chillers

Output Signal

Resistance

product series specifications

Accuracy:

Room/Probe: ± 0.34°F (± 0.19°C)

Averaging: ± 0.34°F (± 0.19°C)

Sensor Type: 1000 Ω nickel @ 70°F (21°C)

Temperature Range: -50° to 220°F (-46° to 104°C)

Sensitivity: Approx 3 Ω /°F (5.4 Ω /°C)

Operating Temperature: -50° to 122°F (-46° to 50°C)

Enclosure: PVC conduit box

Wiring Terminations: 6" (15.24 cm) of 22 AWG

Probe: Duct/OSA/Strap-on: 0.25" (0.64 cm) stainless steel

Wall: Thin film on circuit board with coating

Averaging: 0.093" (0.24 cm) copper

Warranty: 1 year

product series features

Easy to mount
Proven long performance
Many mounting styles
Single assembly ordering
PVC enclosure
Stainless steel insertion probe

more information & related documents

Series Description

The Johnson Controls TE-6300 Series Stap-On 1000 Ohm Nickel RTD Sensors from Johnson Controls are specifically designed for HVAC applications and Building Automation Systems, BAS. The stap-on sensors all feature a nickel-based active sensing element that has been proven to be very stable and robust with many years of service life. These sensors come complete and ready to install for their specific applications.

Kele Description

STRAP-ON 1K OHM NI RTD

Manufacturer

Johnson Controls
