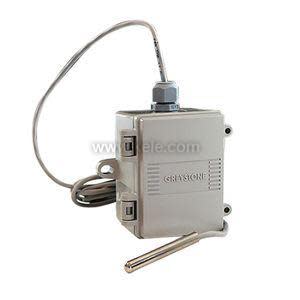

Small grey sensor box with attached stainless probe and cable.

TSRPC08A | Greystone Energy Systems | Temperature Sensors & Transmitters

Remote Probe Bullet Temperature Sensor, ABS, with Hinged and Gasketed Cover, Terminal Block, 2.252K Ω NTC Thermistor, ±0.2°C, 50 mm (2”) Probe

Brand:Greystone Energy Systems

MPN:TSRPC08A

SKU:TSRPC08A

List Price:

$62.00

Today's Price:

$32.24

product datasheet

installation instructions

Lead time of 12 days. Chat with Kele experts now

product specifications

Type

Thermistor

Housing Material

Poly

Probe Length

2 in

Sensor Element

2.2K Thermistor

Housing

Polycarbonate

Housing Style

Bullet

Lead Length

5 ft

Accessory

APB-28,T85U-XR,T81U-XR,T91U-XR,UR,DCP-1.5-W,DCPA-1.2

Feature

Terminal Block

Application

Cold Water Systems,Hot Water Systems,Retrofit,Hydronic Heating Systems,Chillers

Output Signal

Resistance

product series specifications

Sensor Type: Thermistor or RTD

Sensor Accuracy:

Thermistors: ±0.2°C (±0.36°F) @ 25°C (77°F)

Platinum RTDs: ±0.3°C (±0.54°F) @ 0°C (32°F)

Nickel RTDs: ±0.4°C (±0.72°F) @ 0°C (32°F)

Probe Sensing Range: -40 to 100°C (-40 to 212°F)

Ambient Operating Range: 0 to 50°C (32 to 122°F), 5 to 95 %RH non-condensing

Wire Material: PVC insulated, parallel bonded, 22 AWG

Wire Length: 1.524m (5')

Probe Material: 304 series stainless-steel

Probe Diameter: 6mm (0.236")

Enclosure:

A: ABS, UL94-V0, IP65 (NEMA 4X)

C: same as A, with a terminal block

E: Same as C, with thread adapter and cable gland fitting

Termination:

A: Pigtail, 2 or 3 wire

C & E: Terminal block, 2 or 3 wire

Country of Origin: Canada

Warranty: 5 years

product series features

Remote probe strap-on temperature sensors
Stainless-steel
PVC insulated
Available in various lengths

more information & related documents

Series Description

The Greystone TSRP and TSSO Series are single-point, remote probe strap-on temperature sensors that utilize a precision sensor encapsulated in a 6-mm (0.236 in) OD, 304 series stainless-steel probe. They are available in various lengths. Standard wire length is 1.5 m (5 ft). All probes are constructed to provide excellent heat transfer, fast response, and are potted to resist moisture penetration.

Kele Description

TEMP SENSOR, REMOTE PROBE, 2.252K, 2.00" LENGTH, POLY ENCL

Manufacturer

Greystone Energy Systems
