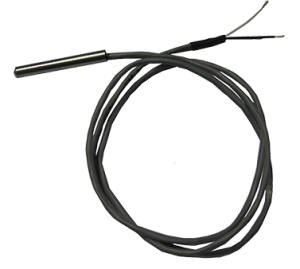

TSFLX07X | Greystone Energy Systems | Temperature Sensors & Transmitters

TEMP SENSOR, STRAP-ON, 10K TYPE III, 10.00' LENGTH, STAINLESS STEEL

Brand:Greystone Energy Systems

MPN:TSFLX07X

SKU:TSFLX07X

This product replaces TE200FL7

List Price:

$47.00

Today's Price:

$24.44

Lead time of 4 days. Chat with Kele experts now

product specifications

Type

RTD

Probe Length

10 ft

Sensor Element

10K Type 3 Thermistor

Housing

Polycarbonate

product series specifications

Sensor Type: Thermistor or RTD (see ordering chart)

Sensor Accuracy:

Thermistors: ±0.2°C (±0.36°F) @ 25°C (77°F)

Platinum RTDs: ±0.3°C (±0.54°F) @ 0°C (32°F)

Nickel RTDs: ±0.4°C (±0.72°F) @ 0°C (32°F)

Probe Sensing Range: -40 to 60°C (-40 to 140°F)

Ambient Operating Range: -40 to 50°C (-40 to 122°F), 5 to 95 %RH non-condensing

Wire Material: FT-6 rated plenum cable, 22 AWG

Wire Length: 3.05m (10 ft)

Probe Material: 304 series stainless-steel

Probe Dimensions: 6mm (0.236 in) diameter x 50mm (2 in) long

Termination: Pigtail, 2 or 3 wire

Country of Origin: Canada

Warranty: 5 years

product series features

Single-point, flying lead temperature sensor
304 series stainless-steel probe
Standard wire length is 3.05 m (10 ft)

more information & related documents

Series Description

The Greystone TSFL Series is a single-point, flying lead temperature sensor that utilizes a precision sensor encapsulated in a 6-mm (0.236 in), OD x 50-mm (2in), 304 series stainless-steel probe. The standard wire length is 3.05m (10 ft). All probes are constructed to provide excellent heat transfer, fast response, and are potted to resist moisture penetration.

Kele Description

TEMP SENSOR, STRAP-ON, 10K TYPE III, 10.00' LENGTH, STAINLESS STEEL

Manufacturer

Greystone Energy Systems
