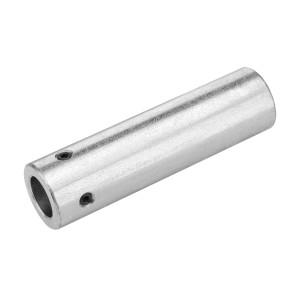

A-22P-A11 | Belimo | Temperature Sensors & Transmitters

Supply Voltage:

22HT-52x 15...24 VDC, ±10%, 0.45 W; 24 VAC, ±10%, 0.8 VA

22HT-54x 15...24 VDC, ±10%, 0.5 W

Enclosure: NEMA 4X/IP65

Cover: Lexan, Belimo orange NCS S0580-Y6OR

Sensor Element: PT100, PT1000, Ni1000, NTC 10k2, NTC 10k3, NTC 20k

Signal Output (Active Temperature): 22CT-52x DC0-5/10V, 22CT-54x 4-20mA

Signal Output: 01CT-5AXPT100 , 01CT-5Bx PT1000, 01CT-5Ex Ni1000 (JCI), 01CT-5LxNTC10k2, 01CT-5MxTC10k3, 01CT-5Qx NTC20k

Accuracy: passive sensors depending on used type

PT.. = ±0.5°F @ 32°F [±0.3°C @ 0°C]

Ni.. = ±0.7°F @ 32°F [±0.4°C @ 0°C]

NTC.. = ±0.3°F @ 77°F [±0.2°C @ 25°C]

±1% of measuring range @ 70°F [21°C]

Measuring Range:

Active sensor: range selectable

Attention: Max. measuring temperature is restricted by max. medium temperature (see Safety data)

Setting range [°C] range [°F] Factory setting:

S0 -50°C-50°C, -30°F -130°F

S1 -10°C - 120°C, 0°F - 250°F

S2 0°C - 50°C, 40°F - 140°F

S3 0°C - 250°C 30°F - 480°F

S4 -15°C - 35°C, 0°F - 100°F

S5 0°C - 100°C, 40°F - 240°F

S6 -20°C - 80°C, 40°F - 90°F Yes

S7 0°C - 160°C, 0°F - 150°F

Operating Humidity: 85% RH non-condensing

Operating Temperature: -30°F to 120°F [-35°C to 50°C]

Weight: 0.24 lbs.

Approvals: CE compliant, ISO 9001, UL 2043, UL 50

Warranty: 5 year
