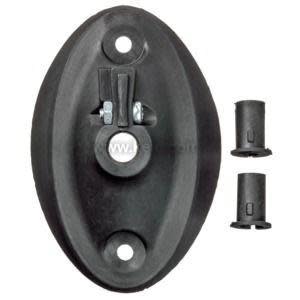

Black oval-shaped mounting plate with a central hole and two smaller bushings included for installation.

A-22D-A03 | Belimo | Temperature Sensors & Transmitters

Mounting flange 0.24" [6 mm] for duct temperature sensors, Plastic, adjustable

Brand:Belimo

MPN:A-22D-A03

SKU:A-22D-A03

List Price:

$13.00

Today's Price:

$6.76

product datasheet

Lead time of 8 days. Chat with Kele experts now

product specifications

Type

Accessory

Enclosure Rating

NEMA 1

product series specifications

Supply Voltage: 24 VAC, ±10%, 2.9 VA (15...24 VDC, ±10%, 1.5 W)

Measurement Range:

CO2: 0 to 2000 ppm

Humidity: 0 to 100% RH

Temperature: 32°F to 120°F [0°C to 50°C]

Accuracy:

CO2: ±75 ppm; >750 ppm: ±10% of measuring value

Humidity: ±2% between 10 to 90% RH @ 70°F [21°C]

Temperature: ±1% of measuring range @ 70°F [21°C]

Humidity: 85% RH non-condensing

Operating Temperature: 32°F to 120°F [0°C to 50°C]

Signal Output: DC 0-5V, DC 0-10V, 4-20 mA

Sensing Technology: NDIR (non-dispersive infrared) with stainless steel wire mesh filter, dual channel calibration

Display: LCD, measured values: CO2, temperature, rH, VOC (22DTM-5106)

Weight: 0.26 lbs

Approvals: IEC/EN, ISO 9001, UL 2043, UL 50

Warranty: 5 years

product series features

Optional LCD display
Integrated sensor options
All in one temperature, humidity, and VOC available

more information & related documents

Series Description

The Belimo Duct Air Quality sensors actively measure CO2 with 0 to 10 V or 4 to 20 mA output signal. Other models available with additional temperature/humidity, or temperature/VOC sensors integrated in one device. All models offer NDIR (non-dispersive infrared) sensor technology with dual channel calibration housed in a NEMA4X / IP65 rated enclosure. The 22DTM-5106 model includes an optional LCD. BACnet and MP-Bus models available.

Kele Description

MOUNT FLNG 0.24" FOR DUCT TEMPSENS PLASTIC ADJ

Manufacturer

Belimo
