BA1KRPFEP25B

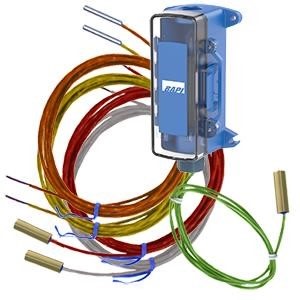

* product family image displayed

BA1KRPFEP25B | BAPI | Temperature Sensors & Transmitters

STRAP-ON 1K RTD 385 REMOTE PROBE 5FT BAPI BOX

Manufacturer:BAPI

MPN:BA1KRPFEP25B

SKU:BA1KRPFEP25B

List Price:

$54.87

Today's Price:

$28.53



Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

view catalog page

product family specifications

    Accuracy:
    Thermistor:
  • ±0.36°F (0.20°C)
    RTD:
  • ±0.55°F (0.30°C)
    Sensor Type:
    Thermistor:
  • 10kΩ, Type II & III
    RTD:
  • 100Ω, 1000Ω 385 curve, 1000Ω 375 curve
    Temperature Range:
    Thermistor:
  • -40° to 221°F (-40° to 105°C)
    RTD:
    1002:
  • 212° to 410°F (100° to 210°C)
    1k1:
  • -328° to 32°F (-200° to 0°C)
    1K3:
  • 392° to 1112°F (200° to 600°C)
    Stability:
  • <0.036°F (0.02°C) per year, 0.14°C with 6,000 continuous hours at 400°C
    Heat Dissipation:
  • 2.7 mW/°C (power need to raise the temperature 1°C), 0.4°C/mW at 0°C
    Enclosure:
    BB:
  • NEMA 4, BAPI Box-IP66, UV-resistant, polycarbonate
    BB2:
  • NEMA 4, BAPI Box 2-IP66, UV-resistant, polycarbonate
    BB4:
  • NEMA 3R, BAPI Box 4-IP44, Nylon & plastic
    WP:
  • NEMA 3R, cast aluminum
    Mounting:
  • Directly to wall or pipe
    Wiring Terminations:
  • 22 AWG wire, etched teflon leads
    Weight:
    RPFEP5:
  • 0.55 lb (0.25 Kg)
    RPFEP10:
  • 0.6 lb (0.27 Kg)
    RPFEP15:
  • 0.65 lb (0.29 Kg)
    Approvals:
  • CE, RoHS
    Warranty:
  • Lifetime

product family features

Three watertight enclosure,Use in Strap-on applications,Limited Lifetime warranty,Use in Freezer applictions

more information & related documents

Family Description

The BAPI BA Series Extreme Temperature Thermistor and RTD Sensors are designed for use in applications from -200 degrees to 600 degrees C. The parts come with stainless steel probe and packages to handle moisture and wide temperature ranges. Remote Temperature Probes feature a 1.75 in long stainless steel probe with either Plenum-Rated Cable or FEP-Jacketed Cable. Lead lengths are 18 in, 5 ft, 10 ft, 15 ft, 20 ft, and 25 ft. Remote Probes are commonly used in refrigerated case or strap-on applications. They are ideal for hard-to-access areas or for applications where the usual Immersion or Duct Sensors do not fit well.

Kele Description

STRAP-ON 1K RTD 385 REMOTE PROBE 5FT BAPI BOX

Manufacturer

BAPI
