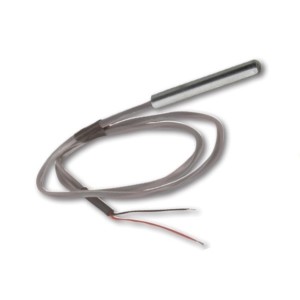

BA/10K-3-PP-25 | BAPI | Temperature Sensors & Transmitters

Accuracy:

Thermistor: ±0.36°F (0.2°C)

RTD: ±0.55°F (0.30°C)

Sensor Type:

Thermistor: 10kΩ, Type II & III

RTD: 100Ω, 1000Ω 385 curve, 1000Ω 375 curve

Temperature Range:

Thermistor: -40° to 221°F

RTD:

1002: 212° to 410°F (100° to 210°C)

1k1: -328° to 32°F (-200° to 0°C)

1K3: 392° to 1112°F (200° to 600°C)

Stability:

Thermistor: ±0.036°C (0.02°F) per year

RTD: 0.14°C with 6,000 continuous hours at 400°C

Heat Dissipation: 2.7 mW/°C (power need to raise the temperature 1°C), 0.4°C/mW at 0°C

Chamber Fluid: Glycol (customer supplied)

HB: Remote probe with 30m cable and bracket

Enclosure Rating:

BB: NEMA 4, BAPI Box-IP66, UV-resistant, polycarbonate

BB2: NEMA 4, BAPI Box 2-IP66, UV-resistant, polycarbonate

BB4: NEMA 3R, BAPI Box 4-IP44, Nylon & plastic

WP: NEMA 3R, cast aluminum

Mounting: Directly to wall or pipe

Wiring Terminations: 22 AWG wire, etched teflon leads

Weight: RPFEP5: 0.55 lb (0.25 Kg); RPFEP10: 0.6 lb (0.27 Kg); RPFEP15: 0.65 lb (0.29 Kg)

Approvals: CE, RoHS

Warranty: Lifetime
