A/CP-S-GD | ACI | Temperature Sensors & Transmitters

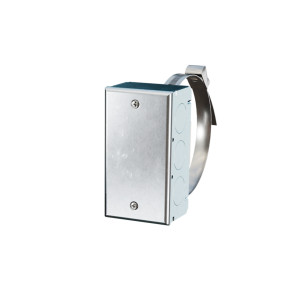

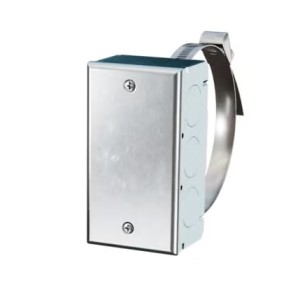

10K Type II Thermistor, Strap-On Temperature Sensor, 1 ¼” to 4” Pipe, Galvanized Enclosure, 14” Brown/Brown Leads
Brand:ACI
MPN:A/CP-S-GD
SKU:A/CP-S-GD
List Price:
$54.54
Today's Price:
$28.36
product specifications
Accessory
#20, APB-28, PN-46, TCC-111, TCC-12, T85U-XR, T81U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2
Application
Cold Water Systems, Hot Water Systems, Retrofit, Hydronic Heating Systems, Chillers
Housing Material
Metallic
Housing Rating
NEMA 1
Housing Style
Strap-On
Lead Length
14 in
Output
Resistance
Probe Length
None
Sensor Element
10K Type 2 Thermistor
Strap Pipe Diameter
1.25 to 4.00 in
Type
Thermistor
product series specifications
- Accuracy:
- Thermistor:
- ±0.36‚Ñâ (0.2‚ÑÉ)
- RTD:
- ±0.50‚Ñâ (0.28‚ÑÉ)
- Sensor Type:
- Thermistor:
- 10 kΩ Type II & III, 20 kΩ, 100 kΩ
- RTD:
- 100Ω, 1000Ω 385 curve
- Temperature Range:
- -40° to 200‚Ñâ (-40° to 150‚ÑÉ)
- Stability:
- Thermistor:
- 0.24°F (0.13°C) over five years
- RTD:
- Heat Dissipation:
- Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)
- Enclosure Rating:
- NEMA 1, Galvanized metal box
- Wiring Terminations:
- 10" of 22 AWG wire or terminal strip
- Weight:
- 0.8 lb (0.36 Kg)
- Approvals:
- RoHs, CE
- Warranty:
- 5 years
product series features
- Fits pipes 2 in to 5 in (5.1 to 12.7 cm)
- Two-year warranty
- Stainless steel strap
more information & related documents
Series Description
The ACI Strap On Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The strap-on sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Strap-on sensors come with a handy box and stainless steel strap for 5 in (12.7 cm) pipes. The ACI Strap-On Sensor mounts directly to a 2 in to 5 in (5.1 to 12.7 cm) pipe. Clean off any insulation or rust to promote solid contact of the copper plate to the pipe. Wrap and tighten the strap around the pipe and compress the foam fully for a firm mount. Faster response can be achieved by using TCC-12 thermal conductive compound.
Kele Description
STRAP ON 10K 2 THMS W/ HANDI BOX
Manufacturer
ACI
