A/AN-S-GD | ACI | Temperature Sensors & Transmitters

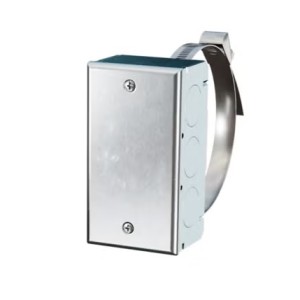

10K Type III Thermistor, Strap-On Temperature Sensor, 1 ¼” to 4” Pipe, Galvanized Enclosure, 14” Brown/Brown Leads

Brand:ACI

MPN:A/AN-S-GD

SKU:A/AN-S-GD

List Price:

$51.51

Today's Price:

$26.79



Availability: Usually Ships in Less Than 12 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
installation instructions
catalog page

product specifications

Accessory

#20, APB-28, PN-46, TCC-111, TCC-12, T85U-XR, T81U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2

Application

Cold Water Systems, Hot Water Systems, Retrofit, Hydronic Heating Systems, Chillers

Housing Material

Metallic

Housing Rating

NEMA 1

Housing Style

Strap-On

Lead Length

14 in

Output

Resistance

Probe Length

None

Sensor Element

10K Type 3 Thermistor

Strap Pipe Diameter

1.25 to 4.00 in

Type

Thermistor

product series specifications

    Accuracy:
    Thermistor:
  • ±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
  • ±0.50‚Ñâ (0.28‚ÑÉ)
    Sensor Type:
    Thermistor:
  • 10 k‚Ѷ Type II & III, 20 k‚Ѷ, 100 k‚Ѷ
    RTD:
  • 100‚Ѷ, 1000‚Ѷ 385 curve
    Temperature Range:
  • -40° to 200‚Ñâ (-40° to 150‚ÑÉ)
    Stability:
    Thermistor:
  • 0.24°F (0.13°C) over five years
    RTD:
    Heat Dissipation:
  • Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)
    Enclosure Rating:
  • NEMA 1, Galvanized metal box
    Wiring Terminations:
  • 10" of 22 AWG wire or terminal strip
    Weight:
  • 0.8 lb (0.36 Kg)
    Approvals:
  • RoHs, CE
    Warranty:
  • 5 years

product series features

  • Fits pipes 2 in to 5 in (5.1 to 12.7 cm)
  • Two-year warranty
  • Stainless steel strap

more information & related documents

Series Description

The ACI Strap On Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The strap-on sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Strap-on sensors come with a handy box and stainless steel strap for 5 in (12.7 cm) pipes. The ACI Strap-On Sensor mounts directly to a 2 in to 5 in (5.1 to 12.7 cm) pipe. Clean off any insulation or rust to promote solid contact of the copper plate to the pipe. Wrap and tighten the strap around the pipe and compress the foam fully for a firm mount. Faster response can be achieved by using TCC-12 thermal conductive compound.

Kele Description

STRAP ON 10K 3 THMS W/ HANDI BOX

Manufacturer

ACI
