S241HC

S100666PW55Y24 | Minco Products | Temperature Sensors & Transmitters

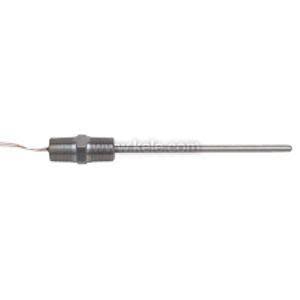

High Temperature Probe

Brand:Minco Products

MPN:S100666PW55Y24

SKU:S241HC

List Price:

$-.--

Today's Price:

$-.--



Availability: Part discontinued. Please contact your Kele representative at 1.877.826.9045 for replacement.
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
catalog page

product series specifications

    S241HC Sensor:
    Sensor Type:
  • 1000‚Ѷ ±0.1% @ 32‚Ñâ (0‚ÑÉ)
    Temperature Coefficient:
  • 0.00375 ‚Ѷ/‚Ѷ/‚ÑÉ
    Sensitivity:
  • 2.1‚Ѷ/‚Ñâ @ 32‚Ñâ (0‚ÑÉ)
    Measurement Range:
  • -58° to 932‚Ñâ (-50° to 500‚ÑÉ)
    Probe Material:
  • 304 Stainless
    Wiring Terminations:
  • Two-wire nickel coated stranded copper, 24" long 22 AWG fiberglass insulated
    Weight:
  • 0.5 lb (0.23 Kg)
    Warranty:
  • 3 years
    TT111H-0800 Fixed Transmitter:
    Supply Voltage:
  • 8.5-35 VDC unregulated
    Sensor Input:
  • 1000‚Ѷ platinum 0.00375 ‚Ѷ/‚Ѷ/‚ÑÉ
    Measurement Range:
  • 0° to 800‚Ñâ (-18° to 427‚ÑÉ)
    Signal Output:
  • 4-20 mA
    Maximum Output :
    Impedance:
  • 775‚Ѷ ± 0.1% @ 24 VDC min
    Accuracy:
  • Calibration accuracy ±0.05% of span
    Operating Temperature:
  • -58° to 160‚Ñâ (-50° to 70‚ÑÉ)
    Well:
    Operating Pressure:
  • 3000 psig (20.7 mPa) max
    Well Material:
  • 304 Stainless steel
    Weight:
  • 0.07 lb (0.03 Kg)
    Warranty:
  • 3 years

product series features

  • Ideal for Boiler stack applications
  • All stainless steel probe
  • 24 in high temperature leads
  • Small transmitter size
  • Well available (WS-6)
  • High temperature span, 0 degrees to 800 degrees F (-18 degrees to 427 degrees C)

more information & related documents

Series Description

The Minco Model S241HC High Temperature Sensor is directly inserted into boiler stacks, steam lines, and other applications to monitor temperature. These high temperature sensors are indispensable in environments where the temperature may rise above the operating range of standard sensors. When used with the Model TT111H-0800 Transmitter, it provides a 4-20 mA output that is linear from 0 to 800 degrees F (-18 to 427 degrees C). These sensors are proven performers in high-demand applications or as part of a Building Automation System, BAS.

Kele Description

HIGHTEMPERATUREPROBE
