SEARS HOT GAS | Kele | Temperature Sensors & Transmitters
PRECON STRAP-ON RTD XMTR 20-250F
Brand:Kele
MPN:SEARS HOT GAS
SKU:SEARS HOT GAS
List Price:
$274.00
Today's Price:
$142.48
product specifications
Housing
No Enclosure
Output
4-20 mA
Probe Length
None
Sensor Element
1K Platinum RTD 375
Type
RTD
product series specifications
- Accuracy:
- Thermistor:
- †±0.36‚Ñâ (0.2‚ÑÉ)
- RTD:
- Type 63:
- †±0.72‚Ñâ (0.40‚ÑÉ)
- Type 71:
†+/-0.0774°F (0.043°C)
- Type 81, 85:
- †±0.27‚Ñâ (0.15‚ÑÉ)
- Type 91:
- †±0.54‚Ñâ (0.30‚ÑÉ)
- Sensor Type:
- Thermistor:
- †2.252 k‚Ѷ, 3 k‚Ѷ, 10 k‚Ѷ Type II, III & III w/11K shunt, 20 k‚Ѷ, 100 k‚Ѷ
- RTD:
- Type 63:
- †1000‚Ѷ Nickel
- Type 71, 81:
- †100‚Ѷ Pt 385 Curve
- Type 85:
- †1000‚Ѷ Pt 385 Curve
- Type 91:
- †1000‚Ѷ Pt 375 Curve
- Temperature Range:
- Thermistor/RTD:
- †-40° to 221‚Ñâ (-40° to 105‚ÑÉ)
- Temperature Stability:
- Thermistor:
- †0.24‚Ñâ (0.13‚ÑÉ) over five years
- RTD:
- †Max 0.04% after 1k hours @ 500 ‚ÑÉ
- Enclosure Rating:
- †NEMA 1, Metal handy box
- Mounting:
- †Directly to pipe using adjustable straps, 3/4‚Ä= to 6‚Ä= pipe standard, 10‚Ä= with option
- Wiring Terminations:
- †8' (2.44m), 24 AWG zipcord using crimp or solder connection, type 71 & 81 have 18" leads
- Weight:
- †1.0 lb (0.45 Kg)
- Approvals:
- †CE
- Warranty:
- †Lifetime
product series features
- Wide selection of thermistor and RTD curves
- Adjustable steel straps fit multiple pipe sizes
- Fexible copper plate conforms to pipe surface
- Copper plate is insulated from ambient air
- Lifetime warranty
- Ultra high accuracy optional
more information & related documents
Series Description

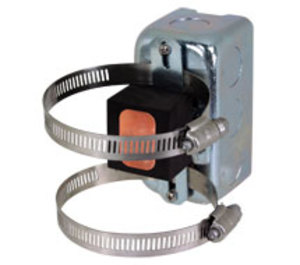

The Precon ST-STP* Thermistor and RTD Series strap-on sensor provides precision monitoring of a pipe surface temperature. The unique design features the sensor attached to a flexible copper plate that will conform to the pipe surface. The rubber pad provides spring tension plus surrounds the copper plate to eliminate the effects of ambient air temperature.
Kele Description
PRECON STRAP-ON RTD XMTR 20-250F
Manufacturer
Kele
