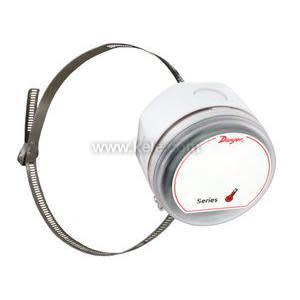

Small white round sensor with clear front and pipe-mounting metal strap.

TE-SNW-E | Dwyer Instruments | Temperature Sensors & Transmitters

Weather Resistant Surface Strap-On Temperature Sensor, Polycarbonate Enclosure, NEMA 3R, 1K RTD 385, Fits 2.00" to 6.00" Pipe Diameters

Brand:Dwyer Instruments

MPN:TE-SNW-E

SKU:TE-SNW-E

List Price:

$131.00

Today's Price:

$68.12

product datasheet

installation instructions

Lead time of 12 days. Chat with Kele experts now

product specifications

Type

RTD

Housing Material

Poly

Sensor Element

1K Platinum RTD 385

Housing Style

Strap-On

Strap Pipe Diameter

2.00 to 6.00 in

Accessory

APB-28,T85U-XR,T81U-XR,T91U-XR,UR,DCP-1.5-W,DCPA-1.2

Application

Cold Water Systems,Hot Water Systems,Retrofit,Hydronic Heating Systems,Chillers

Output Signal

Resistance

product series specifications

Accuracy: Thermistor temperature sensor: ±0.22°C @ 25°C (±-0.4°F @ 77°F);

RTD temperature sensor: DIN Class A ±0.15°C @ 0°C (±0.28°F @ 32°F)

Temperature Limits: Operating: -32 to 240°F (-35.5 to 115.5°C)

Sensor Curves: See page reference u below

Housing Material: Meets UL 94 V-0 polycarbonate plastic, NEMA 3R

Weight: 7 oz (198 g)

product series features

Easy to mount external tab housing
1/4 turn housing cover with chain
Multiple conduit knockouts for easy installation positioning
Non-intrusive temperature measurement of 2 to 6 in pipes

more information & related documents

Series Description

The TE-SNW Series weather resistant surface temperature sensor non-intrusively measures the process temperature in hot- and cold-water loops in buildings. In order to work with most common building controllers, the output of the sensor can be chosen from six different RTD and thermistor curves.

Kele Description

PT1000 RTD

Manufacturer

Dwyer Instruments
