BA/1K-TB-M304-2-BB2 | BAPI | Temperature Sensors & Transmitters

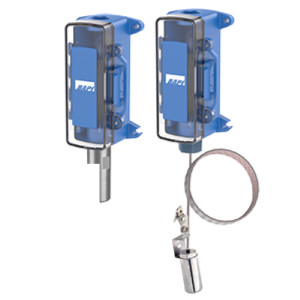

BAPI 1K Planinum RTD (385 Curve) 2 304 SS Thermobuffer

Brand:BAPI

MPN:BA/1K-TB-M304-2-BB2

SKU:BA/1KTBM3042BB2

List Price:

$337.00

Today's Price:

$175.24



Availability: 1 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
catalog page

product specifications

Housing

NEMA 4X

Output

Resistance

Probe Length

2 in

Sensor Element

1K Platinum RTD 385

Type

RTD

product series specifications

    Accuracy:
    Thermistor:
  • ±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
  • ±0.55‚Ñâ (0.30‚ÑÉ)
    Sensor Type:
    Thermistor:
  • 10k‚Ѷ, Type II & III
    RTD:
  • 100‚Ѷ, 1000‚Ѷ 385 curve, 1000‚Ѷ 375 curve
    Temperature Range:
  • -40° to 185‚Ñâ (-40° to 85‚ÑÉ)
    Stability:
    Thermistor:
  • ±0.036‚Ñâ (0.02‚ÑÉ) per year
    RTD:
  • 0.14 °C with 6,000 continuous hours at 400 °C
    Heat Dissipation:
  • 0.4°C/mW at 0°C, 2.7 mW/°C (power need to raise the temperature 1C)
    Chamber Fluid:
  • Glycol (customer supplied)
    HB:
  • Remote probe with 30‚Ä= cable and bracket
    Enclosure Rating:
    HB:
  • NEMA 1, Hanging Bracket with 30‚Ä= jacketed cable
    BB:
  • NEMA 4, BAPI Box: IP66, UV- resistant polycarbonate
    BB2:
  • NEMA 4, BAPI Box 2: IP66, UV- resistant polycarbonate
    Mounting:
  • Directly to wall or with hanging bracket
    Wiring Terminations:
  • 22 AWG wire, etched teflon leads
    Weight:
    HB:
  • 0.55 lb (0.25 Kg)
    BB:
  • 0.8 lb (0.36 Kg)
    BB2:
  • 0.8 lb (0.36 Kg)
    Approvals:
  • CE, RoHS
    Warranty:
  • Lifetime

product series features

  • Fluid-filled chamber to mimic core temperatures
  • Wall mounted or hanging bracket
  • Limited Lifetime warranty
  • Used in Freezer applications
  • Wall mount or wire shelf hanger
  • Lower temperature ranges available

more information & related documents

Series Description

The BAPI BA Series Thermobuffer Thermistor and RTD Sensors are designed specifically for freezers and coolers to simulate the temperature of the contents rather than the air temperature. The fluid-filled chamber allows for slower reaction to abrupt temperature changes, thus eliminating the false alarms caused by opening and closing the door. The Thermobuffer comes in 2 in and 4 in buffer sizes with an enclosure for wall mounting or hanging bracket mount.

Kele Description

THERMOBUFFER TEMP 2IN SS 1K OHM 385 RTD BAPI BOX 2

Manufacturer

BAPI

Related Documents

PDF - Thermobuffer Instruction ManualThermobuffer Instruction Manual
