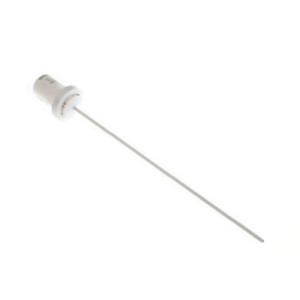

TCBH0 | Veris | Temperature Sensors & Transmitters
Temperature sensor, 10k Ω type 3 thermistor.
Brand:Veris
MPN:TCBH0
SKU:TCBH0
product specifications
Housing
Handy Box
Output
Resistance
Probe Length
4 in
Sensor Element
10K Type 3 Thermistor
Type
Thermistor
product series specifications
Accuracy:
Thermistor: 2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C)
10k Type 2 & 3: ±0.06°F (0.1°C)
RTD: 100, 100 385 curve: ±0.17°F (0.3°C)
Sensor Type:
Thermistor: 2.2kO, 3kO, 10kO Type 2 & 3, 20kO, 100kO
RTD: 100O, Pt 385 Curve; 1000O, Pt 385 Curve
Temperature Range: Thermistor/RTD: -13 to 221°F (-25° to 105°C)
Temperature Coefficient:
Thermistor: Negative temperature coefficient
RTD: Positive temperature coefficient
Mounting: Directly to Ceiling
Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 - 1.52 m)
Probe length: 4" (10 cm), 6" (15 cm), 8" (20 cm), 12" (30 cm), 18" (45 cm), 24" (61 cm)
Enclosure: White plastic
Weight: 0.14 lb (0.06 Kg)
Warranty: 5 years
more information & related documents
Series Description
The Veris TC & TS Series Ceiling Style Flush-Mount Thermistor and RTD Wall Sensors provide precision room temperature sensing for building automation systems. The TC Series has many probe lengths to choose from such as 4 in (10 cm), 6 in (15 cm), 8 in (20 cm), 12 in (30 cm), 18 in (45 cm) and 24 in (61 cm). The sensing element is made of a highly stable, precision thermistor material or platinum RTD. This design is intended for interior use only.
Kele Description
CEILING 4 IN 10K T3 THMS
Manufacturer
Veris
Related Documents
TS series Datasheet
