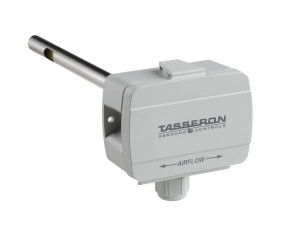

* product series image displayed

THTCPA05 | Tasseron Sensors | Temperature Sensors & Transmitters

CABLE PVC HT 10K-2 5FT

Brand:Tasseron Sensors

MPN:THTCPA05

SKU:THTCPA05

List Price:

$30.60

Today's Price:

$15.91

Lead time of 5 days. Chat with Kele experts now

product series specifications

Supply Voltage: 24 VAC ±20%; 18-35 VDC Max

Power Consumption: 3VA for 24VAC, 3W for 24VDC (peak);

Operating Range: -5 to+55°C / 23 to +131°F; 0...95%RH non-condensing

Enclosure Rating: IP65; NEMA 4X

Enclosure Material: PC/ABS UL 94 V-0, UV resistant injection-molded

Cover: Removable Quick snap/hinged cover

Probe: AISI 316L; 8in. Length (205mm), 12mm diameter

Mounting: Duct, M16 cable inlet

Connection: AWG 22-16 / 0.35—1.5mm² spring-loaded, Quick Connect wire terminals

Output Signal: Analog 0-10V

*Other outputs available on request

product series features

CO2 measurement or combination CO2/RH/Temp options
Analog 0-10V output signals for CO2/RH/T
Dual beam infrared CO2 sensing technology (NDIR)
Durable NEMA 4X/IP65 injection-molded watertight enclosure
Quick Connect tool-free wire terminals
Optional passive NTC/RTD temperature elements available
CE & RoHS compliant
5 year limited warranty
Made in the USA

more information & related documents

Series Description

High quality duct mounted CO2 sensor with options for Relative Humidity  (RH) and Temperature (T) outputs in the NEMA 4X Euro enclosure,  equipped with hinged cover and tool-free Quick Connect wire terminals. These sensors are designed as a CO2 & temperature or as a combination sensor with available CO2/RH/Temp measurements.  Available with 0-10V standard output(s), with additional option for  passive temperature NTC or RTD elements.  Dual channel technology and a solid state infrared source ensures long  lifetime, excellent accuracy and repeatability with low drift and quick start  up.

Kele Description

CABLE PVC HT 10K-2 5FT

Manufacturer

Tasseron Sensors
