10K Type II All-Purpose Thermistor @ 77°F (25°C) (Yellow Leads), Custom Probe Length 12

Brand:Kele

MPN:ST-A24-XL12

SKU:ST-A24-XL12

List Price:

$58.87

Today's Price:

$30.61



Availability: Usually Ships in Less Than 4 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Accessory

T81U-XR, T85U-XR, T91U-XR, UR

Application

Air Handling Unit, Duct Temperature

Housing

No Enclosure

Output

Resistance

Probe Length

12 in

Sensor Element

10K Type 2 Thermistor

Type

Thermistor

product series specifications

    Accuracy:
    Thermistor:
  • †±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
    Type 63:
  • †±0.72‚Ñâ (0.40‚ÑÉ)
    Type 71:
  • †+/-0.0774°F (0.043°C)

    Type 81, 85:
  • †±0.27‚Ñâ (0.15‚ÑÉ)
    Type 91:
  • †±0.54‚Ñâ (0.30‚ÑÉ)
    Sensor Type:
    Thermistor:
  • †2.252 k‚Ѷ, 3 k‚Ѷ, 10 k‚Ѷ Type II, III & III w/11K shunt, 20 k‚Ѷ, 100 k‚Ѷ
    RTD:
    Type 63:
  • †1000‚Ѷ Nickel
    Type 71, 81:
  • †100‚Ѷ Pt 385 Curve
    Type 85:
  • †1000‚Ѷ Pt 385 Curve
    Type 91:
  • 1000‚Ѷ Pt 375 Curve
    Temperature Range:
    Thermistor/RTD:
  • †-40° to 221‚Ñâ (-40° to 105‚ÑÉ)
    Temperature Coefficient:
    Thermistor:
  • †Negative temperature coefficient
    RTD:
  • †Positive temperature coefficient
    Temperature Stability:
    Thermistor:
  • †0.24‚Ñâ (0.13‚ÑÉ) over five years
    RTD:
  • †Max 0.04% after 1k hours @ 500 ‚ÑÉ
    Heat Dissipation:
  • †2.7 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
    Mounting:
  • †Directly to duct, wall, or customersupplied back box, no adapters needed for standard boxes
    Wiring Terminations:
  • †8' (2.4m) of 24 AWG pigtails with prestripped ends, type 71 & 81 have 18" leads
    Weight:
  • †0.2 lb (0.09 Kg) w/o options
    Approvals:
  • †CE
    Warranty:
  • †Lifetime

product series features

  • Life time warranty
  • Wide selection of thermistor and RTD curves
  • Tip sensitive for precise temperature response
  • Adaptable with many options
  • All metal construction with 304 stainless steel probe
  • Easy to mount to duct, wall, or back box
  • Waterproof probe

more information & related documents

Series Description

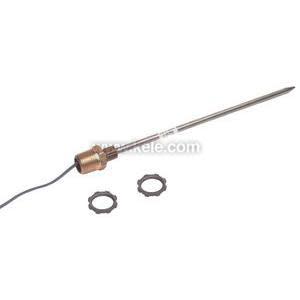

The Precon ST-A Series All Purpose Thermistor and RTD Sensors provide precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The active sensing element is made of a highly stable precision thermistor material or platinum RTDs. Each ST-A sensor is a rugged, point-sensitive waterproof sensor featuring a 9 in (22.8 cm) 304 stainless steel probe and brass fitting. The brass fitting has a 1/2 in NPT male thread. The sensors are supplied with two 1/2 in locknuts for easy installation in handy boxes (or other enclosures with 1/2 in knockouts).

Kele Description

TEMP SENSOR, DUCT, 10K TYPE II, 12.00" PROBE, NO E

Manufacturer

Kele
