KTMP81 | Kele | Temperature Sensors & Transmitters

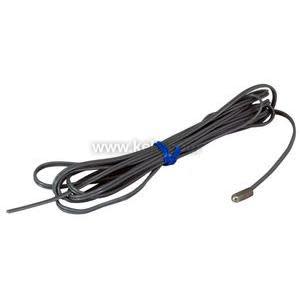

Bullet Temperature Sensor, 100Ω Mini Probe RTD @ 32°F (0°C), 385 Platinum Curve (Gray Leads)
Brand:Kele
MPN:KTMP81
SKU:KTMP81
List Price:
$33.46
Today's Price:
$17.40
Log in for customized pricingproduct specifications
Type
RTD
Probe Length
0.50 in
Sensor Element
100 Ohm Platinum RTD 385
Housing Style
Bullet
Lead Length
8 ft
Accessory
T85U-XR,T81U-XR,T91U-XR,UR,DCP-1.5-W,DCPA-1.2
Application
Cold Water Systems,Hot Water Systems,Retrofit,Hydronic Heating Systems,Chillers
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: ±0.50°F (±0.28°C)
RTD: ±0.60°F (±0.33°C)
Sensor Type:
Thermistor: 2.252 kΩ, 3 kΩ, 10 kΩ Type II, III & III w/11K shunt, 20 kΩ, 100 kΩ
RTD:
Type 63: 1000Ω Nickel
Type 71, 81: 100Ω Pt 385 Curve
Type 85: 1000Ω Pt 385 Curve
Type 91: 1000Ω Pt 375 Curve
Temperature Range:
Thermistor/RTD: -40° to 221°F (-40° to 105°C)
Temperature Coefficient:
Thermistor: Negative temperature coefficient
RTD: Positive temperature coefficient
Temperature Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: <0.09°F (0.05°C) over 5 years
Heat Dissipation: 2.7 mW/°C (power needed to raise the temperature 1°C)
Enclosure Rating: NEMA 1, Brushed stainless steel
Mounting: Directly to surface
Wiring Terminations: 8', 24 AWG gray wire leads, type 71 & 81 sensors have 18" leads
Weight: 0.2 lb (0.10 Kg)
Approvals: CE
Warranty: 3 years
product series features
- Wide selection of thermistor and RTD curves
- Fast response time
- 0.19 in round x 0.50 in long (0.48 x 1.27 cm) housing
more information & related documents
Series Description
The Kele KTMP* Series Thermistor and RTD temperature probe is designed for applications requiring a small sensor with a fast thermal response. Constructed with stainless steel housing, the probe is available with a choice of several thermistor and RTD sensor curves.
Kele Description
MINI PROBE SENSOR 100 OHM TYPE 81 RTD
Manufacturer
Kele
