KTMP3-X25

KTMP3-X25 | Kele | Temperature Sensors & Transmitters

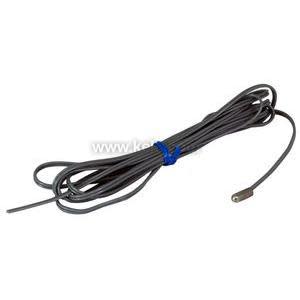

Bullet Temperature Sensor, 10,000Ω Mini Probe Thermistor @ 77°F (25°C), Type III (Gray Leads), 25' (7.6m) Lead Length 24 AWG

Brand:Kele

MPN:KTMP3-X25

SKU:KTMP3-X25

List Price:

$29.64

Today's Price:

$15.41



Availability: Usually Ships in Less Than 8 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Accessory

T85U-XR, T81U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2

Application

Cold Water Systems, Hot Water Systems, Retrofit, Hydronic Heating Systems, Chillers

Housing

No Enclosure

Housing Style

Bullet

Lead Length

25 ft

Output

Resistance

Probe Length

0.50 in

Sensor Element

10K Type 3 Thermistor

Type

Thermistor

product series specifications

    Accuracy:
    Thermistor:
  • ±0.50‚Ñâ (0.28‚ÑÉ)
    RTD:
  • ±0.60(‚Ñâ0.33‚ÑÉ)
    Sensor Type:
    Thermistor:
  • 2.252 k‚Ѷ, 3 k‚Ѷ, 10 k‚Ѷ Type II, III & III w/11K shunt, 20 k‚Ѷ, 100 k‚Ѷ
    RTD:
    Type 63:
  • 1000‚Ѷ Nickel
    Type 71, 81:
  • 100‚Ѷ Pt 385 Curve
    Type 85:
  • 1000‚Ѷ Pt 385 Curve
    Type 91:
  • 1000‚Ѷ Pt 375 Curve
    Temperature Range:
    Thermistor/RTD:
  • -40° to 221‚Ñâ (-40° to 105‚ÑÉ)
    Temperature Coefficient:
    Thermistor:
  • Negative temperature coefficient
    RTD:
  • Positive temperature coefficient
    Temperature Stability:
    Thermistor:
  • 0.24‚Ñâ (0.13‚ÑÉ) over five years
    RTD:
  • <0.09‚Ñâ (0.05‚ÑÉ) over 5 years
    Heat Dissipation:
  • 2.7 mW/°C (power needed to raise the temperature 1°C)
    Mounting:
  • Directly to surface
    Wiring Terminations:
  • 8', 24 AWG gra ywire leads, type 71 & 81 sensors have 18" leads
    Weight:
  • 0.25 lb (0.11 Kg)
    Approvals:
  • CE
    Warranty:
  • 3 years

product series features

  • Wide selection of thermistor and RTD curves
  • Fast response time
  • 0.19 in round x 0.50 in long (0.48 x 1.27 cm) housing

more information & related documents

Series Description

The Kele KTMP* Series Thermistor and RTD temperature probe is designed for applications requiring a small sensor with a fast thermal response. Constructed with stainless steel housing, the probe is available with a choice of several thermistor and RTD sensor curves.

Kele Description

MINI PROBE SENSOR 10K TYPE III THMS 25 FT LEAD

Manufacturer

Kele
