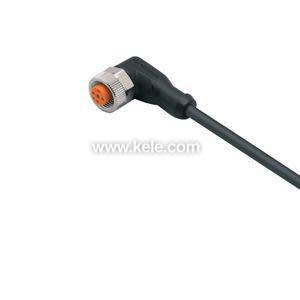

Black cable terminating in a right-angled circular connector with metal threads and an orange insert, designed for industrial sensors.

EVC007 | Ifm Efector | Temperature Sensors & Transmitters

6 ft Right Angled Connector W/LED Indication

Brand:Ifm Efector

MPN:EVC007

SKU:EVC007

List Price:

$63.00

Today's Price:

$32.76

product datasheet

catalog page

Lead time of 4 days. Chat with Kele experts now

product specifications

Type

Accessory

product series specifications

Supply Voltage: 9.6 to 32 VDC, 530 mA

Media Temperature Range: -13° to 284°F (-25° to 140°C)

Setpoint Range:

TK6330: 3° to 284°F (-16° to 140°C)

TK7330: -4° to 284°F (-20° to 140°C)

Reset:

TK6330: Adjustable: -4° to 277°F (-20° to 136°C)

TK7330: Fixed: 9°F (5°C)

Contact Rating: 0.5A DC PNP (sourcing)

Contact Type:

TK6330: 1 NO, 1 NC, open collector transistor

TK7330: 2 NO, open collector transistor

Accuracy: ±5.4°F (3.0°C)

Repeatability: ±0.18°F (0.1°C)

Wetted Parts: Stainless 316L/1.4404

Visual Indication: Power Green LED Switching status Yellow LED (Energized = Switched)

Shock: 50g (11ms)

Vibration Resistance: 20g (10 to 2000 Hz)

Operating Temperature:-13° to 158°F (-25° to 70°C)

Enclosure: IP67; Material: PBT (Pocan); PC (Makrolon); FPM (Viton); stainless steel 316L

Process Connection: ¼" NPT

Wiring Terminations: 4 pin M12 Electrical connector (order separately)

Dimensions: 1.06" diameter x 4.15"H (2.7 x 10.5 cm)

Weight: 0.25 lb (0.11 Kg)

Approvals: UL File E179189, CE

Warranty: 2 years

product series features

Two, easy to use dual setup dials
Solid state electronics
Two PNP switching outputs
No software needed
Local LEDs for power and switching status

more information & related documents

Series Description

The IFM Efector TK Series Temperature Switch is a versatile temperature switch that is configured for set point and reset through two radial setting rings. These temperature switches are ideal for maximum and minimum temperature indication applications. The switch points can be set up out of the box without being installed and applied to the system. Once set, they can be locked by a third rotating ring. The TK Series is available with either set point and reset adjustment or two set points and a fixed reset. Each TK Series Temperature Switch should be ordered with a separate cable assembly available in 6 ft (1.8 m), 15 ft (4.6 m), 30 ft (9.1 m) lengths.

Kele Description

6FT RT ANGLED CONNECTOR W/LED INDICATION

Manufacturer

Ifm Efector
