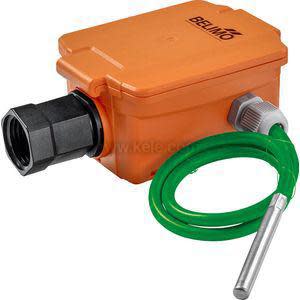

Cable Temperature Sensor Active, 4...20 mA, Probe Length 2" [50 mm], Probe Diameter 0.24" [6 mm]
Brand:Belimo
MPN:22CT-54H
SKU:22CT-54H
List Price:
$227.00
Today's Price:
$118.04
Log in for customized pricingproduct specifications
Type
RTD
Probe Length
2 in
Sensor Element
1K Platinum RTD 385
Housing Style
Bullet
Transmitter Temperature Range
-30 to 130 °F,0 to 250 °F,40 to 140 °F,30 to 480 °F,0 to 100 °F,40 to 240 °F,40 to 90 °F,0 to 150 °F
Lead Length
6.5 ft
Accessory
UR,DCP-1.5-W,DCPA-1.2
Application
Cold Water Systems,Hot Water Systems,Retrofit,Hydronic Heating Systems,Chillers
Output Signal
Analog
product series specifications
Supply Voltage:
22HT-52x 15...24 VDC, ±10%, 0.45 W; 24 VAC, ±10%, 0.8 VA
22HT-54x 15...24 VDC, ±10%, 0.5 W
Enclosure: NEMA 4X/IP65
Cover: Lexan, Belimo orange NCS S0580-Y6OR
Sensor Element: PT100, PT1000, Ni1000, NTC 10k2, NTC 10k3, NTC 20k
Signal Output (Active Temperature): 22CT-52x DC0-5/10V, 22CT-54x 4-20mA
Signal Output: 01CT-5AXPT100 , 01CT-5Bx PT1000, 01CT-5Ex Ni1000 (JCI), 01CT-5LxNTC10k2, 01CT-5MxTC10k3, 01CT-5Qx NTC20k
Accuracy: passive sensors depending on used type
PT.. = ±0.5°F @ 32°F [±0.3°C @ 0°C]
Ni.. = ±0.7°F @ 32°F [±0.4°C @ 0°C]
NTC.. = ±0.3°F @ 77°F [±0.2°C @ 25°C]
±1% of measuring range @ 70°F [21°C]
Measuring Range:
Active sensor: range selectable
Attention: Max. measuring temperature is restricted by max. medium temperature (see Safety data)
Setting range [°C] range [°F] Factory setting:
S0 -50°C-50°C, -30°F -130°F
S1 -10°C - 120°C, 0°F - 250°F
S2 0°C - 50°C, 40°F - 140°F
S3 0°C - 250°C 30°F - 480°F
S4 -15°C - 35°C, 0°F - 100°F
S5 0°C - 100°C, 40°F - 240°F
S6 -20°C - 80°C, 40°F - 90°F Yes
S7 0°C - 160°C, 0°F - 150°F
Operating Humidity: 85% RH non-condensing
Operating Temperature: -30°F to 120°F [-35°C to 50°C]
Weight: 0.24 lbs.
Approvals: CE compliant, ISO 9001, UL 2043, UL 50
Warranty: 5 year
product series features
- Stainless steel Probe
- Stainless steel or brass thermowell pockets available as accessories
- NTC thermistors available
- CE compliant
- 5 year warranty
more information & related documents
Series Description
The Belimo 01CT/22CT Contact Temperature Sensor Series are passive cable type temperature sensor for measuring the temperature in pipe and air applications. Incorporates a stainless steel probe and plenum rated cable. The 01CT-5xL-P are cable type temperature sensor with adjustable rubber mounting flange for measuring temperature in FCU, AHU and VAV applications. Incorporates a stainless steel probe and plenum rated cable. The 22CT-5x Series have active sensor (0-5/10 V, 4-20 mA) for measuring the temperature in pipe and air applications. Incorporates a stainless steel probe and plenum rated cable.
Kele Description
CABLE TEMPSENS 4-20 MA
Manufacturer
Belimo
Belimo 22CT-54 Datasheet
