TT100-BP-4-0 to 100°F | ACI | Temperature Sensors & Transmitters

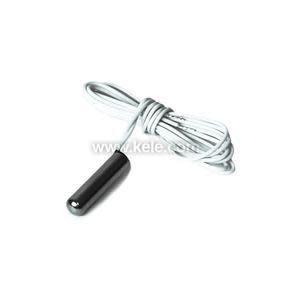

Transmitter Bullet Probe, 100 Ohm, 4-20 mA, 0 to 100°F Temperature Range
Brand:ACI
MPN:TT100-BP-4-0 to 100°F
SKU:TT1000100BP4
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Type
RTD
Probe Length
rtd
Sensor Element
100 Ohm Platinum RTD 385
Housing Style
Bullet
Transmitter Temperature Range
0 to 100 °F (-17 to 38 °C)
Output
4 - 20 mA
Lead Length
24 in
Accessory
UR,DCP-1.5-W,DCPA-1.2
Feature
Transmitter
Application
Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment,Duct Temperature,Immersion Temperature,Outside Air Temperature,OSA
product series specifications
Accuracy:
Thermistor: ±0.36°F (0.2°C)
RTD: ±0.50°F (0.28°C)
Sensor Type:
Thermistor: 10 kΩ Type II & III, 20 kΩ, 100 kΩ
RTD: 100Ω, 1000Ω 385 curve
Temperature Range: -40° to 302°F (-40° to 150°C)
Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: <±0.1°F drift
Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)
Enclosure Rating:
Button: NEMA 1, Brass, Stainless
Bullet: NEMA 4, Stainless
Flush: NEMA 1, Stainless
Mounting:
Button, Surface mount: Directly to wall
Bullet: Strap on to pipe
Flush: Directly to wall
Wiring Terminations: 10" of 22 AWG wire or terminal strip
Weight:
Button: 0.12 lb (0.05 Kg)
Bullet: 0.04 lb (0.02 Kg)
Surface mount: 0.2 lb (0.09 Kg)
Approvals: CE, RoHs
Warranty: 5 years
product series features
- Five-year warranty
- Stainless steel casing (BP)
- Small footprint for hidden applications (BBS. SBS)
- Brass or stainless button casing (BBS, SBS)
- Available in thermistor or RTD
more information & related documents
Series Description
The ACI Bullet/Button Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The button and bullet style sensors come in thermistor or RTD sensor curves. The A/*BP Stainless Steel Thermistor and RTD Sensor is for under-insulation mounting and direct contact to the pipe. Clean off any insulation or rust to promote solid contact, and secure with tie wraps so the probe is parallel to the pipe.
Kele Description
BULLET XMT 100 RTD 0-100F 4/20MA
Manufacturer
ACI
