TOKR00

TOKR00 | Veris | Temperature Sensors & Transmitters

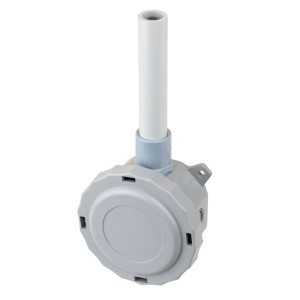

TO Series outdoor temperature sensor, 10k Ω thermistor with 11k shunt.

Brand:Veris

MPN:TOKR00

SKU:TOKR00

List Price:

$81.81

Today's Price:

$42.54



Availability: 3 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
installation instructions

product specifications

Housing

Weather Resist

Output

Resistance

Sensor Element

10K W/11KSype 11 Thermistor

Type

Thermistor

product series specifications

    Supply Voltage:
  • 12 to 30 VDC @ 30 mA (current model only)
    :
  • 12-30 VDC @ 15 mA, 24 VAC @ 0.4 VA (voltage models only)
    Accuracy:
    Thermistor:
    2.2k, 3k,20k,100k:
  • ±0.11‚Ñâ (0.2‚ÑÉ)
    10k Type 2 & 3:
  • ± 0.06‚Ñâ (0.1‚ÑÉ)
    RTD:
    100, 100 385 curve:
  • ±0.17‚Ñâ (0.3‚ÑÉ)
    Analog:
  • ±1‚Ñâ (±0.5‚ÑÉ)
    Sensor Type:
    Thermistor:
  • 2.2kŒ©, 3k‚Ѷ, 10k‚Ѷ Type 2 & 3, 20k‚Ѷ, 100k‚Ѷ
    RTD:
  • 100‚Ѷ, Pt 385 Curve; 1000‚Ѷ, Pt 385 Curve
    Temperature Range:
    Thermistor/RTD:
  • -13° to 221‚Ñâ (-25° to 105‚ÑÉ)
    Analog :
  • -40° to 122‚Ñâ (-40° to 50‚ÑÉ) or 32° to 122‚Ñâ (0° to 50‚ÑÉ) model specific
    Output (analog models):
  • 4- 20 mA @ 500‚Ѷ or 0-5/10 VDC model specific
    Temperature Coefficient:
    Thermistor:
  • Negative temperature coefficient
    RTD:
  • Positive temperature coefficient
    Mounting:
  • Directly to wall
    Wiring Terminations:
  • 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)
    Enclosure:
  • Nema 4
    Approvals:
  • CE
    Weight:
  • 1.1 lb (0.5 Kg)
    Warranty:
  • 5 year

more information & related documents

Series Description

The Veris TO Series Outside Air Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable precision thermistor material or platinum RTD.

Kele Description

OSA 10K W/11KS THMS

Manufacturer

Veris

Related Documents

PDF - TO Series DatasheetTO Series Datasheet
PDF - TO Series Installation ManualTO Series Installation Manual
