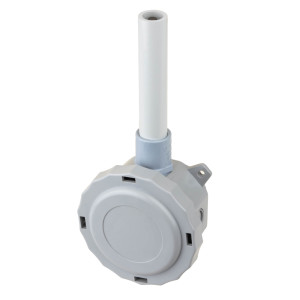

TOCR02 | Veris | Temperature Sensors & Transmitters

Supply Voltage: 12 to 30 VDC @ 30 mA (current model only)

12-30 VDC @ 15 mA, 24 VAC @ 0.4 VA (voltage models only)

Accuracy:

Thermistor:

2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C)

10k Type 2 & 3: ±0.06°F (0.1°C)

RTD:

100, 100 385 curve: ±0.17°F (0.3°C)

Analog: ±1°F (±0.5°C)

Sensor Type:

Thermistor: 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ

RTD: 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve

Temperature Range:

Thermistor/RTD: -13° to 221°F (-25° to 105°C)

Analog: -40° to 122°F (-40° to 50°C) or 32° to 122°F (0° to 50°C) model specific

Output (analog models): 4-20 mA @ 500Ω or 0-5/10 VDC model specific

Temperature Coefficient:

Thermistor: Negative temperature coefficient

RTD: Positive temperature coefficient

Mounting: Directly to wall

Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)

Enclosure: Nema 4

Approvals: CE

Weight: 1.1 lb (0.5 Kg)

Warranty: 5 years
