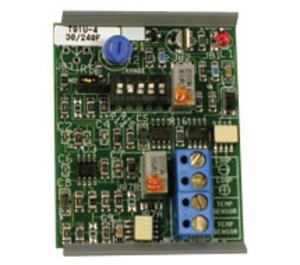

* product family image displayed

T91UEMC3OS | Kele | Temperature Sensors & Transmitters

OSA 1K OHM 375 XMTR 0/100F EMC




List Price:


Today's Price:


Availability: Usually Ships in Less Than 14 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product family specifications

Supply Voltage

10.5-45 VDC


0.1℉ or 0.2% of span

Signal Output

4-20 mA @ 675Ω, two wire loop-powered, except display @ 375Ω

Sensor Element

1000Ω platinum TCR 0.00375 Ω/Ω/℃ RTD




-30° to 210℉ (-34° to 98.9℃)

Minimum Span

40℉ (22℃)

Usable range

-30° to 250℉ (-34.4° to 121.1℃)



200° to 960℉ (93° to 515℃)

Minimum Span

40℉ (4.4℃)

Usable range

200° to 1000℉ (93.3° to 573.8℃)



-300° to -8℉ (-184° to -22℃)

Minimum Span

40℉ (4.4℃)

Usable range

-300° to 32℉ (-184.4° to 0℃)


Display option (XTD) 3-1/2 digit LCD, NEMA 4 (IP65)

Operating Temperature

0° to 140℉ (-18° to 60℉)

Operating Humidity

0% to 95% non-condensing


1″H x 1.8″W x 2.25″L (2.5 x 4.6 x 5.7 cm)


0.16 lb (0.07 Kg) w/o options


CE (EN50081-1, EN50082-1) Optional CE (EN50081-2, EN50082-2) Industrial RF/EM Hardened


18 months

product family features

  • DIP switch rangeable
  • Loop-calibration test signal
  • Low cost
  • Snap-track mounting
  • Loop-powered LED indication
  • Fits into card slot of ST-U91 housing
  • Very high-range and low-range models availableCE approved (commercial and industrial)
  • Conformal coated

more information & related documents

Family Description

The T91H, T91L, T91U 1000Ω 375 Platinum RTD Rangeable Transmitters are a family of transmitters designed for multirange applications for HVAC, industrial and building automation uses. The T91U is a range selectable, two-wire 4-20 mA RTD transmitter used with Type 91 1000Ω platinum RTD sensors. The transmitter is available in six standard ranges, or it can be set for any range between -30° to 280℉ (-34° to 156℃) with a minimum span of 40℉ (22℃). To adjust the T91U, set the DIP switches to match the desired range, and use the zero and span pots to fine tune. A high accuracy digital ohmmeter and decade box are required. The T91U has a special 20 mA loop calibration test signal to provide easy system verification. Simply move the bottle plug jumper from norm to 20, and the transmitter will output a constant 20 mA. The loop-up LED provides power indication for the 4-20 mA output. The T91H and T91L are specialty units for very high temperatures and very low temperatures, respectively. Both units are rangeable within their specialty limits.

Kele Description

OSA 1K OHM 375 XMTR 0/100F EMC
