T85U-2O | Kele | Temperature Sensors & Transmitters

OSA 1K OHM XTMR(-20/140F)




List Price:


Today's Price:


Availability: Usually Ships in Less Than 1 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product family specifications

Supply Voltage

10.5-45 VDC

Transmitter Accuracy

±0.2°F or 0.2% of the span TCR 0.00385 Ω/Ω/°C

Signal Output

4-20 mA @ 675Ω, two wire loop-powered, except display @ 375Ω


-30° to 250°F (-34° to 121°C) Minimum span of 40°F (22°C)



-30° to 210℉ (-34.4° to 98.9℃)

Minimum Span

40℉ (22℃)

Usable Range

-30° to 250℉ (-34.4° to 121.1℃)

Loop Calibration Output

20 mA ± 0.2%

Sensor Element

1000Ω platinum TCR 0.00385 Ω/Ω/°C

Operating Temperature

0° to 140°F (-18° to 60°C)

Operating Humidity

0% to 95% non-condensing

Wiring Terminations



0.16 lb (0.07 Kg) w/o options


CE (EN50081-1, EN50082-1)

Optional CE (EN50081-2, EN50082-2) Industrial RF/EM Hardened


1 year

product family features

  • Class A Sensors
  • Dip switch rangeable
  • Loop calibration test signal
  • Low cost
  • Snap-track mounting
  • Loop-powered LED indication
  • Fits into card slot of ST-U85 housing
  • CE approved (commercial and industrial)
  • Available as a complete assembly
  • Conformal coated

more information & related documents

Family Description

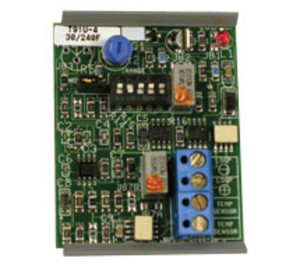

The Kele T85U 1000 ohm RTD rangeable transmitter is a range selectable, two-wire 4-20 mA RTD transmitter used with Type 85 1000Ω platinum RTD sensors. The transmitter is available in six standard ranges, or it can be set for any range between -30° to 280℉ (-34° to 156℃) with a minimum span of 40℉ (22℃). To adjust the T85U, set the DIP switches to match the desired range, and use the zero and span pots to fine tune. A high accuracy digital ohmmeter and decade box are required. The T85U has a special 20 mA loop calibration test signal to provide easy system verification. Simply move the bottle plug jumper from norm to 20, and the transmitter will output a constant 20 mA. The loop-up LED provides power indication for the 4-20 mA output.

Kele Description

OSA 1K OHM XTMR(-20/140F)
