ST-O24 | Kele | Temperature Sensors & Transmitters

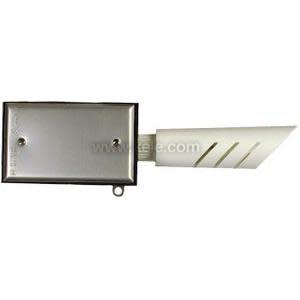

Outside Air Temperature Sensor, 10K Type II (gray leads)
Brand:Kele
MPN:ST-O24
SKU:ST-O24
List Price:
$86.86
Today's Price:
$45.17
product specifications
Accessory
T81U-XR, T85-XR, T91U-XR, DCP-1.5-W, DCPA-1.2, UR, AD-2
Application
Cold Stores, Greenhouses, Production Plants, Warehouses
Housing Material
Metallic
Housing Rating
NEMA 3R
Lead Length
8 ft
Output
Resistance
Probe Length
3 in
Sensor Element
10K Type 2 Thermistor
Type
Thermistor
product series specifications
- Accuracy:
- Thermistor:
- †±0.36‚Ñâ (0.2‚ÑÉ)
- RTD:
- Type 63:
- †±0.72‚Ñâ (0.40‚ÑÉ)
- Type 71:
†+/-0.0774°F (0.043°C)
- Type 81, 85:
- †±0.27‚Ñâ (0.15‚ÑÉ)
- Type 91:
- †±0.54‚Ñâ (0.30‚ÑÉ)
- Sensor Type:
- Thermistor:
- †2.252 k‚Ѷ, 3 k‚Ѷ, 10 k‚Ѷ Type II, III & III w/11K shunt, 20 k‚Ѷ, 100 k‚Ѷ
- RTD:
- Type 63:
- †1000‚Ѷ Nickel
- Type 71, 81:
- †100‚Ѷ Pt 385 Curve
- Type 85:
- †1000‚Ѷ Pt 385 Curve
- Type 91:
- †1000‚Ѷ Pt 375 Curve
- Temperature Range:
- Thermistor/RTD:
- †-40° to 221‚Ñâ (-40° to 105‚ÑÉ)
- Temperature Coefficient:
- Thermistor:
- †Negative temperature coefficient
- RTD:
- †Positive temperature coefficient
- Temperature Stability:
- Thermistor:
- †0.24‚Ñâ (0.13‚ÑÉ) over five years
- RTD:
- †Max 0.04% after 1k hours @ 500 ‚ÑÉ
- Heat Dissipation:
- †2.7 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
- Enclosure Rating:
- †NEMA 4, Metal, weather resistant
- Mounting:
- †Directly to wall with screws or toggle bolts
- Wiring Terminations:
- †8' (2.4m) of 24 AWG pigtails with prestripped ends, type 71 & 81 have 18" leads
- Weight:
- †0.75 lb (0.3 Kg) with no options
- Approvals:
- †CE
- Warranty:
- †Lifetime
product series features
- Lifetime warranty
- Vented weather shield for quick temperature response
- Moistureproof with 8 ft (2.4m) lead
- Ultra high accuracy optional
more information & related documents
Series Description
The PreCon Model ST-O Outside Air Sensor provides precise remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The active sensing element is a highly stable precision thermistor material or platinum RTD. The temperature sensitive element is sheathed in a stainless steel tube and mounted inside a ventilated, treated, white PVC shield to minimize radiant energy and weather related effects. The air sensors have a weather shield mounted on a weather resistant outlet box for easy installation on an protected outdoor surface. This rugged enclosure will assure a long life, even under extreme weather conditions.
Kele Description
TEMP SENSOR, OSA, 10K TYPE II, 3.00" PROBE, METALLIC ENCL
Manufacturer
Kele
