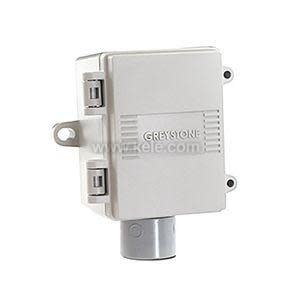

A small light-grey Greystone sensor box with a hinged lid, flanged mounting ears, and a round conduit hub at the bottom

TSOSE24X | Greystone Energy Systems | Temperature Sensors & Transmitters

Outside Air Temperature Sensor, Polycarbonate, UL94-V0, IP65 (NEMA 4X), with Terminal Block & Gland Fitting, 10,000 Ω Type 2, NTC Thermistor, ±0.2°C

Brand:Greystone Energy Systems

MPN:TSOSE24X

SKU:TSOSE24X

List Price:

$78.00

Today's Price:

$40.56

product datasheet

installation instructions

Lead time of 8 days. Chat with Kele experts now

product specifications

Type

Thermistor

Housing Material

Poly

Sensor Element

10K Type 2 Thermistor

Housing

Polycarbonate

Accessory

T81U-XR,T85-XR,T91U-XR,DCP-1.5-W,DCPA-1.2,UR

Feature

Terminal Block,Cable Gland Fitting

Application

Cold Stores,Greenhouses,Production Plants,Warehouses

Output Signal

Resistance

product series specifications

Sensor Type: Thermistors or RTD (see ordering chart)

Sensor Accuracy:

Thermistors: ±0.2°C (±0.36°F) @ 25°C (77°F)

Platinum RTDs: ±0.3°C (±0.54°F) @ 0°C (32°F)

Nickel RTDs: ±0.4°C (±0.72°F) @ 0°C (32°F)

Probe Sensing Range: -40 to 50°C (-40 to 122°F)

Ambient Operating Range: -40 to 50°C (-40 to 122°F), 5 to 95 %RH non-condensing

Wire Material: PVC insulated, parallel bonded, 22 AWG

Enclosure:

A: Polycarbonate, UL94-V0, IP65 (NEMA 4X)

C: same as A, includes a terminal block

E: Same as C, includes cable gland fitting

Termination:

A: Pigtail, 2 or 3 wire

C & E: Terminal block, 2 or 3 wire

Country of Origin: Canada

Warranty: 5 years

product series features

Single-point, outside air temperature sensor
Provides excellent heat transfer and fast response
They are potted to resist moisture penetration

more information & related documents

Series Description

The Greystone TSOS Series is a single-point, outside air temperature sensor that utilizes a precision sensor. All probes are constructed to provide excellent heat transfer, fast response, and are potted to resist moisture penetration. A sun and windshield are integrated into a weatherproof, compact polycarbonate enclosure with a hinged and gasketed cover for ease of installation.

Kele Description

TEMP SENSOR, OSA, 10K TYPE II, POLY ENCL

Manufacturer

Greystone Energy Systems
