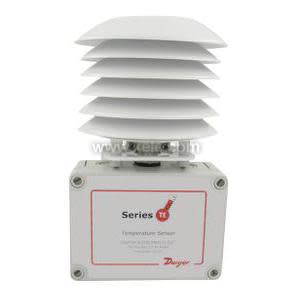

White cylindrical shield with slotted sides and a mounting bracket

TE-OSA-F | Dwyer Instruments | Temperature Sensors & Transmitters

Outside Air Temperature Sensor, 20K, Poly Enclosure, NEMA 3R (IP54), Includes Removable Terminal Block

Brand:Dwyer Instruments

MPN:TE-OSA-F

SKU:TE-OSA-F

List Price:

$81.00

Today's Price:

$42.12

product datasheet

installation instructions

Lead time of 9 days. Chat with Kele experts now

product specifications

Type

Thermistor

Housing Material

Poly

Sensor Element

20K Thermistor

Housing

Polycarbonate

Enclosure Rating

NEMA 3R,IP54

Accessory

T81U-XR,T85-XR,T91U-XR,DCP-1.5-W,DCPA-1.2,UR

Application

Cold Stores,Greenhouses,Production Plants,Warehouses

Output Signal

Resistance

product series specifications

Accuracy: Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD temperature sensor: DIN class A: ±0.15°C @ 0°C (±0.28°F @ 32°F)

Temperature Limits: Operating: -40 to 302°F (-40 to 150°C)

Housing Material: Polycarbonate

Enclosure Rating: TE-OND/TE-RND: NEMA 4X (IP65); TE-OSA: NEMA 3R (IP54)

Weight: 0.65 lb (295 g)

product series features

Weatherproof for outdoor installation
Radiation shield available to eliminate heating effects following installation in direct sunlight
Terminal connector eliminates need for wire nuts

more information & related documents

Series Description

The TE-OND/TE-RND/TE-OSA Series outdoor temperature sensors are offered in different configurations to increase measurement accuracy by reducing radiated heat effects. For applications where the north side of the building is accessible, the TEOND/ TE-OSA can be used to protect against low levels of radiated heat.

Kele Description

TEMP SENSOR, OSA, 20K, POLY ENCL

Manufacturer

Dwyer Instruments
