BA/WT-O-BB | BAPI | Temperature Sensors & Transmitters
RF OSA TEMP XMTR, 418MHZ @1MW
Brand:BAPI
MPN:BA/WT-O-BB
SKU:BA/WT-O-BB
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct series specifications
- DEVICE OPERATION:
- Supply Power:
- 3.6 VDC, Battery Power Only
- :
- Batteries Two AA 3.6V lithium batteries (included)
- :
- Battery Life 8 years @ 20 second intervals
- Sensor Type:
- Temperature, 10K-2 thermistor
- :
- Optional Humidity, Capacitive
- Transmitted Range Value:
- :
- Temperature Overall Range, -40° to 185‚Ñâ (-40° to 85‚ÑÉ)
- :
- Humidity Overall Range 0-100% RH
- Accuracy:
- Transmitted Accuracy
- :
- Temperature Thermistor, 10K type 2, ±0.5‚Ñâ (±0.32‚ÑÉ)
- :
- RH 2% Capacitive, 10-90% @ 77‚Ñâ
- Indication:
- LED on Transmit
- A/D Resolution:
- 10 bit (1024 counts)
- Mounting:
- Four screws direct to outside wall
- :
- RH Probe 2.4″L x 0.95″∅ weather shield
- :
- Temp Probe 2.4″L x 1/4″∅ weather shield
- RADIO TRANSMITTER:
- Protocol:
- Proprietary (Point Six)
- Frequency:
- 418 MHz
- Modulation:
- Frequency Modulation
- Transmit Power:
- 1mW (0 dBm)
- Open Air Range:
- 100' (30 m)
- Transmission Time:
- 20ms
- Transmission Interval:
- Can be factory programmed
- :
- Temp. Only 20 seconds standard (Can be factory programmed 10-300s)
- :
- RH and Temp. 40 seconds standard (Can be factory programmed 20-300s)
- Antenna:
- Internal
- Channels:
- 1
- Device Addresses:
- 100 transmissions per minute
- Programming:
- Push button in field
- Repeater Capable:
- Yes
- Compliance:
- RoHS
- :
- Temp. Only FCC ID# T4F060811TEMP
- :
- RH and Temp. FCC ID# T4F060811RH
- Operating Temperature:
- -40° to 185‚Ñâ (-40° to 85‚ÑÉ)
- :
- RH Transmitter -22° to 158‚Ñâ (-30° to 70‚ÑÉ)
- Operating Humidity:
- 0% to 100% RH, Non-condensing
- Construction:
- UV-Resistant Polycarbonate, UL94 V-0
- Enclosure Rating:
- IP-66
- Dimensions:
- 4.1″H x 5.0″W x 2.5″D (10.4 x 12.7 x 6.4 cm)
- Weight:
- 1 lb (0.45 Kg)
- Warranty:
- 2 years
product series features
- Wireless temperature and humidity sensing
- Eight-year battery life
- Built-in error detection
- Repeater available for 1000-foot range
- Output modules available with signal outputs of voltage, current, or resistance
- Stainless steel temperature probe
- PVC weather shield (temperature model)
- Sintered filter (temperature / RH model)
- Two-year warranty
more information & related documents
Series Description

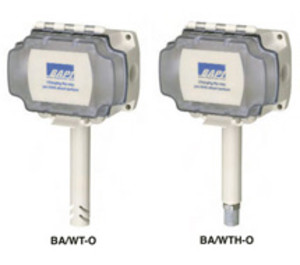

The BAPI BA/WT-O, BA/WTH-O wireless outside air temperature and humidity transmitters sense outside conditions and transmit them with a battery-operated 418 MHz transmitter. The sensor / transmitter is mounted in a NEMA 4 (IP66) enclosure with a 2.58 in stainless steel temperature probe or a 1.58 in temperature / humidity probe. The transmitter has an open air range of 100 feet. The battery has an estimated eight-year life with transmission updates approximately every 10 seconds. Other duct insertion probe lengths are available.
Kele Description
RF OSA TEMP XMTR, 418MHZ @1MW
Manufacturer
BAPI
Related Documents
BA-WTH-O Combination Unit Datasheet
