A/AN-BC-O-SUN | ACI | Temperature Sensors & Transmitters

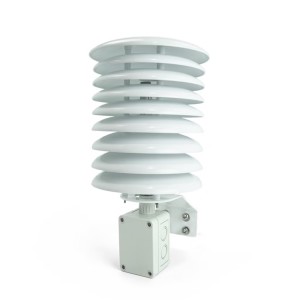

TEMP SENSOR, OSA, 10K TYPE 3 OA TEMP SENSOR W/ SUN SHIELD
Manufacturer:ACI
MPN:A/AN-BC-O-SUN
SKU:A/AN-BC-O-SUN
add to cart
product family specifications
Accuracy
Thermistor
±0.36℉(0.2℃)
RTD
±0.5℉ (0.28℃)
Sensor Type
Thermistor
10 kΩ Type II & III, 20 kΩ, 100 kΩ
RTD
100Ω, 1000Ω 385 curve
Temperature Range
-40° to 194℉ (-40° to 90℃)
Stability
Thermistor
0.24°F (0.13°C) over five years
RTD
<±0.1°C drift
Heat Dissipation
Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)
Enclosure Rating
NEMA 3R, Plastic
Wiring Terminations
10" of 22 AWG wire or terminal strip
Weight
0.68 lb (0.31 Kg)
Approvals
CE, RoHs
Warranty
5 years
product family features
- ±0.36℉ (0.2℃) accuracy thermistor, ±0.5℉ (0.4℃) accurecy RTD
- Five-year warranty
- Wide selection of thermistor or RTD curves
- Weather tight Housing
more information & related documents
Family Description
The ACI Series OSA Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The OSA sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. OSA sensors mount in a watertight box with weather shield and easy-mount tabs. The ACI OSA Sensor should be located on an outside wall facing north in the northern hemisphere. Using the tabs on the box, mount to the exterior wall using screws appropriate for the wall construction.
Kele Description
TEMP SENSOR, OSA, 10K TYPE 3 OA TEMP SENSOR W/ SUN SHIELD
Manufacturer
ACI
