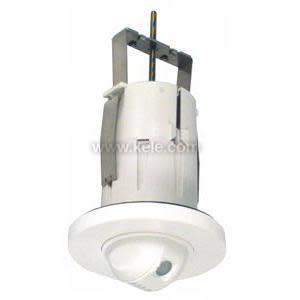

TY7321A1009 | Yamatake | Temperature Sensors & Transmitters
Radiant Temperature Sensor, 1 to 5 V DC (Corresponds to 32 to 122 °F (0 to 50 °C)
Brand:Yamatake
MPN:TY7321A1009
SKU:TY7321A1009
List Price:
$902.00
Today's Price:
$469.04
product specifications
Accuracy
±3.60°F
Housing Material
Poly
Housing Rating
UL V-O
Output
0-5 V
Power Supply
24 VAC
Temperature Range
41 to 122 °F (5 to 50 °C)
product series specifications
- Supply Voltage:
- 24 VAC ±15% (50/60 Hz), 0.3 VA
- Signal Output:
- 1-5 VDC
- Accuracy:
- ±3.6‚Ñâ (2‚ÑÉ)
- Sensor Range:
- 32° to 122‚Ñâ (0° to 50‚ÑÉ)
- Sensor Coverage:
- Adjustable (344 degrees horizontal/65 degrees vertical)
- Sensing Distance:
- Unlimited (without obstructions)
- View Angle:
- 52 degrees, distance to sensing = 1:1
- Response Time:
- 10 sec
- Emissivity:
- 0.95
- Operating Temperature:
- 59° to 95‚Ñâ (15° to 35‚ÑÉ)
- Operating Humidity:
- 10% to 90% RH non-condensing
- Enclosure Rating:
- Fire-resistant plastic (white)
- Weight:
- 0.6 lb (0.27 Kg)
- Warranty:
- 1 year
product series features
- Non-contact with 52 degree view angle
- 1 to 5 VDC signal, 32 degree to 122 degree F (0 degree to 50 degrees C)
- Ten-second response
- 344 degree swivel coverage
- Ceiling or wall mount
- Attractive white base and cover
- Use isn ice rink and lobbies
more information & related documents
Series Description
The Yamatake TY7321 is a non-contact infrared room radiant-temperature transmitter. Infrared energy is one of the main components of the perceived temperature in a space. The TY7321 has a wide 52 degrees fixed viewing angle which averages the heat energy of the office environment and offers a 1-5 VDC signal for temperature. It mounts conveniently to any ceiling or wall via back box or direct to ceiling tiles or plaster. The lens coverage is adjustable and points horizontally up to 344 degrees and vertically up to 65 degrees.
Kele Description
INFARED ROOM TEMP TRANSMITTER
Manufacturer
Yamatake
Related Documents
TY-7321 Installation Sheet
